Rear Parking Aid Warning Buzzer, Removing And Installing

Rear Parking Aid Warning Buzzer -H15- is located behind right luggage compartment cover support.

Removing:

-- Remove right luggage compartment cover support. Refer to Luggage Compartment Trim .

-- Disconnect connector -1-.

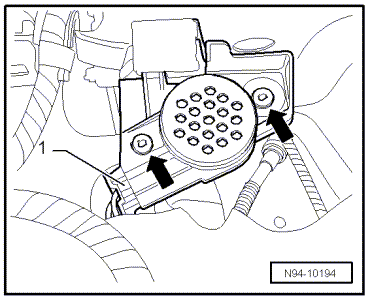

Fig 1: Warning Buzzer For Parking Aid H15 Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage securing clips -arrows- and remove Rear Parking Aid Warning Buzzer -H15- from bracket.

Installing:

Install in reverse order of removal.
