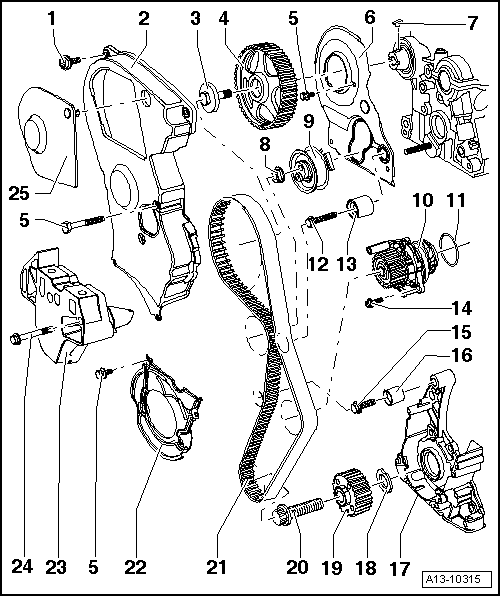

Toothed Belt Assembly Overview, Without Divided Toothed Belt Guard
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicles from 01.2006 have a new toothed belt guard. Identification: The upper toothed belt guard does not have cover -item 25- and the guard is divided in the engine mount bracket area. Vehicles with divided toothed belt guard assembly overview TOOTHED BELT ASSEMBLY OVERVIEW, WITH DIVIDED TOOTHED BELT GUARD .
- Bolt, 10 Nm
- Upper Toothed Belt Guard
- Bolt, 50 Nm + 180° (1/2) additional turn
- Always replace.
- Use the retainer 3036 to loosen and tighten.
- Camshaft Gear
- Installed position secured by woodruff key.
- Bolt, 10 Nm
- Install with locking fluid AMV 185 101 A1.
- Upper Rear Toothed Belt Guard
- Woodruff Key
- Check for secure seating.
- Nut, 25 Nm
- Semi Automatic Tensioner Roller
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP .
- O-ring
- Always replace
- Bolt, 25 Nm
- Damper Roller
- Bolt, 15 Nm
- Bolt, 35 Nm
- Damper Roller
- Sealing Flange
- Diamond Disc
- Always replace.
- Crankshaft Toothed Belt Gear
- There must be no oil on the contact surface between the toothed belt sprocket, diamond disc and crankshaft.
- Only possible to install in one position
- Bolt, 90 Nm + 90° (1/4) additional turn
- Always replace
- Do not lubricate.
- Use the counter support 3415 to loosen and tighten.
- Toothed Belt
- Before removing, mark the direction of rotation using chalk or a felt tip marker.
- Check for wear
- Lower Rear Toothed Belt Guard
- Engine Mount Bracket
- Bolt, 45 Nm
- Toothed Belt Guard Cover
