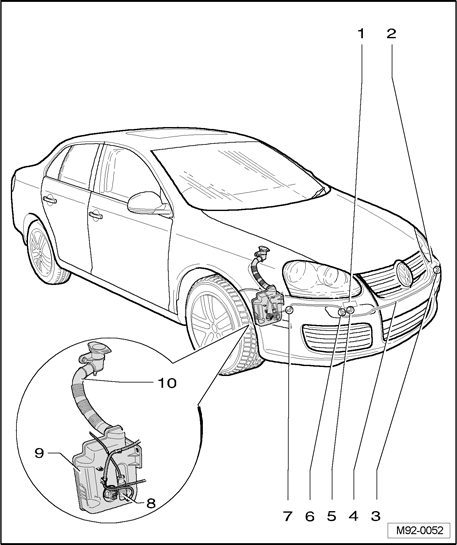

Headlamp washer system, component overview

1 - Right headlamp washer jet with telescopic cylinder

• Removing and installing washer jet retainer → Headlamp washer jet retainer, removing and installing
• Checking and adjusting jets → Headlamp washer system spray jets, checking and adjusting
• Removing and installing telescopic cylinder → Headlamp washer jet telescopic cylinder, removing and installing

2 - Left headlamp washer jet with telescopic cylinder

• Removing and installing washer jet retainer → Headlamp washer jet retainer, removing and installing
• Checking and adjusting jets → Headlamp washer system spray jets, checking and adjusting
• Removing and installing telescopic cylinder → Headlamp washer jet telescopic cylinder, removing and installing

3 - Angle coupling

• Washer hose coupling to left washer jet
• Overview → Washer Hose Couplings

4 - Hose

5 - Angle coupling

• Washer hose coupling to right washer jet
• Overview → Washer Hose Couplings

6 - T-piece

• Routes washer hoses to washer jets.

7 - L-piece

• Routes washer hoses to washer jets.

8 - Headlamp Washer Pump V11

• Removing and installing → Headlamp Washer Pump V11, emoving and installing

9 - Washer fluid reservoir

• Removing and installing → Washer fluid reservoir, removing and installing

10 - Washer fluid reservoir filling tube

• Removing and installing
