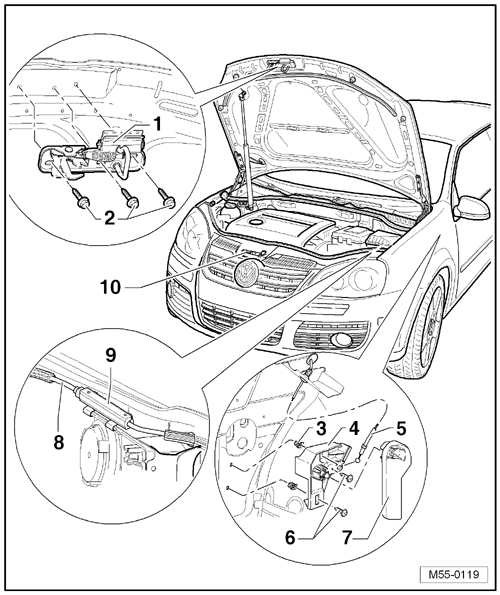

Hood Locking And Unlocking Components Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.
- Catch
- To remove, unscrew bolts, item 2, see item 2.
- To adjust catches in their longitudinal holes, slide toward left or right.
- Bolt
- 10 Nm
- Quantity: 3
- Expanding Nut
- Quantity: 2
- Bracket
- Release Cable
- Clipped into mounting bracket.
- Bolt
- 1.5 Nm
- Quantity: 2
- Hood Release Lever
- Removing and installing, refer to HOOD RELEASE LEVER .
- Release Cable
- Clipped in on wheel housing and lock carrier.
- Release Coupling
- Release, disconnecting, refer to HOOD RELEASE CABLE, DISCONNECTING .
- Hood Latch
- Removing and installing, refer to LATCH .
- Adjusting, refer to HOOD LATCH, ADJUSTING .
