Hood Latch, Adjusting
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.
If after closing hood the gap dimensions are no longer as they had been adjusted, adjustment can be corrected slightly by the lid lock and catches.
-- Remove the radiator grille. Refer to RADIATOR GRILLE .

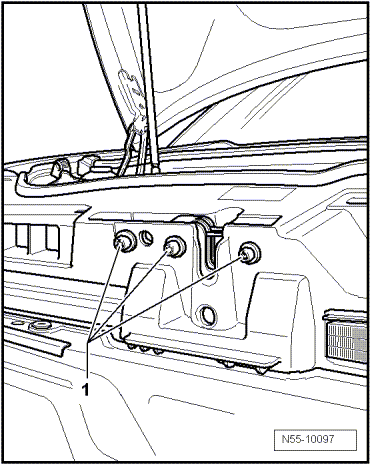

-- If the bolts -1- are loosened now, hood gap dimensions can be corrected or adjusted .
Tightening specifications of bolts -1- : 12 Nm.
-- Adjust catches, item 1, See Figure.
