Hood Release Cable, Disconnecting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

-- Open hood.

-- Unclip the release coupling -1- over the right headlamp lock carrier -2-.

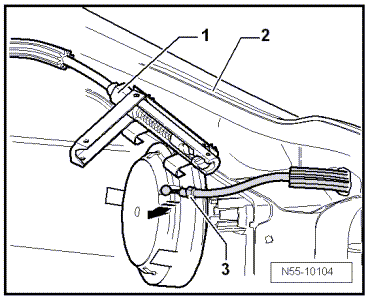

Fig 1: Identifying Disconnected Release
GWWN55-10104Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open release coupling -1- and remove release -3- in -direction of arrow- from release coupling.

NOTE:

When installing, make sure that the release sleeve is inserted correctly and the coupling is locked.

Before closing the hood, check the operating lever and release function.
