Exhaust manifold, front exhaust pipe with Three Way Catalytic Converter (TWC) and attachments (vehicles with engine code AFP)

WARNING: This page is about a different variant/trim than selected.

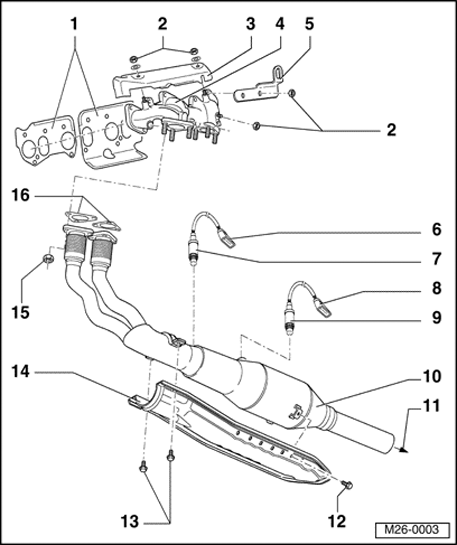

Fig 1: Exploded View Of Exhaust Manifold/ Front Exhaust Pipe/Catalytic Converter With Attachments (Vehicles With Engine Code AFP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Gasket

2 - 25 Nm

3 - Heat shield

4 - Exhaust manifold

5 - Mounting eye

6 - Connector

Fig 2: Exploded View Of Exhaust Manifold/ Front Exhaust Pipe/Catalytic Converter With Attachments (Vehicles With Engine Code AFP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

7 - Heated Oxygen Sensor (HO2S) -G39-* bank 1, 50 Nm

Component location: in front catalytic converter
Only grease threads with G 052 112 A3 hot bolt paste, do NOT allow hot bolt paste to get into slots on sensor body
Voltage supply of oxygen sensor heater via Fuel Pump (FP) Relay -J17-
Check oxygen sensor heater for Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC). Refer to Oxygen sensor heater for oxygen sensors before catalytic converter, checking

Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Refer to Oxygen sensors and oxygen sensor regulation before catalytic converter, checking

8 - Connector

Fig 3: Exploded View Of Exhaust Manifold/ Front Exhaust Pipe/Catalytic Converter With Attachments (Vehicles With Engine Code AFP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

9 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130-* bank 1, 50 Nm

Component location: In rear catalytic converter
Only grease threads with G 052 112 A3 hot bolt paste, do NOT allow hot bolt paste to get into slots on sensor body
Voltage supply of oxygen sensor heater via Fuel Pump (FP) Relay -J17-
Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC). Refer to Oxygen sensor heater for oxygen sensors behind Three Way Catalytic Converter (TWC), checking

Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Refer to Oxygen sensors and oxygen sensor regulation behind catalytic converter, checking

10 - Front exhaust pipe with catalytic converter

11 - to front muffler

Fig 4: Exploded View Of Exhaust Manifold/ Front Exhaust Pipe/Catalytic Converter With Attachments (Vehicles With Engine Code AFP)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

12 - 10 Nm

13 - 15 Nm

14 - Heat shield

15 - 40 Nm

16 - Gasket
