Selectable functions for address word "33 CARB / OBD II"

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Press -1- button to select "Rapid data transfer" operating mode 1.
Press the -3- button twice to select "CARB / OBD II" address word 33.

Display will appear as shown:

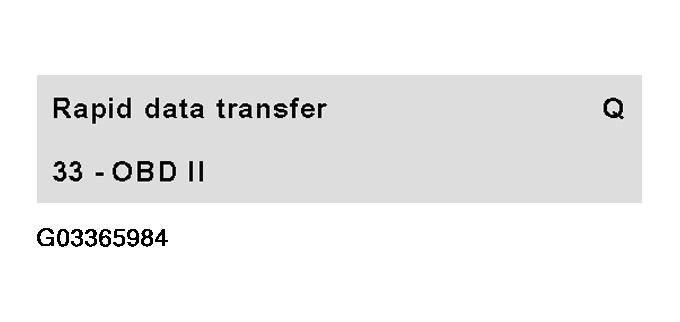

Fig 1: Identifying Selectable Functions For Address Word "33 CARB / OBD II" (1 Of 2)

Press -Q- button to confirm input.

Display will appear as shown

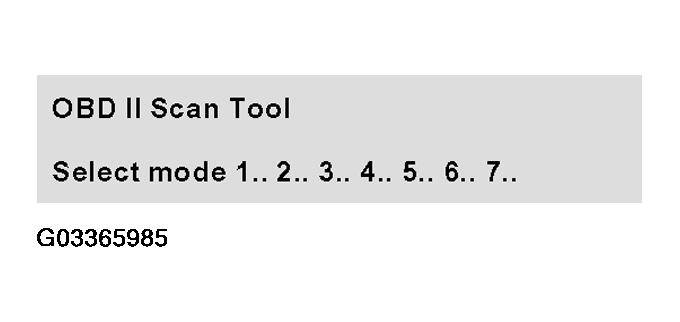

Fig 2: Identifying Selectable Functions For Address Word "33 CARB / OBD II" (2 Of 2)

The following modes can be selected:

Mode 1 Current data. See CURRENT DATA, MODE 1 .

Mode 2 Freeze frame data. See FREEZE FRAME DATA, MODE 2 or DIAGNOSTIC DATA .

Mode 3 DTC memory. See DTC MEMORY, MODE 3 .

Mode 4 Clear DTC memory. See CLEAR DTC MEMORY, MODE 4 .

Mode 5 Oxygen sensor signal. See OXYGEN SENSOR SIGNAL (B1-S1), MODE 5 .

Mode 6 Transfer measured values. Measured values that are not being monitoring will be output.

Mode 7 Interrogate DTC memory. Malfunctions which have not switched ON the MIL can be interrogated.

NOTE: When a mode is selected, the control module replies with a 4 on the display in front of the mode selected. Example: mode 2 will be indicated in the display with mode 42.
