DTC memory, mode 3

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen Cabrio, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Press -3- button to select mode 3 DTC memory.

Display will appear as shown

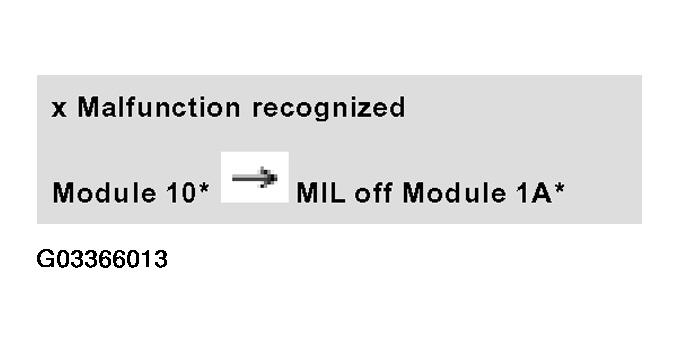

Fig 1: VAG 1551/1552 Scan Tool Display For DTC Memory Mode 3 (1 Of 2)

Module 10* or 1A* will be activated (alternately):

Module 10 = Engine Control Module (ECM) -J220-
Module 1A = Transmission Control Module (TCM) -J217-
MIL OFF / ON = MIL switched OFF or ON

Press --> button, any stored DTCs will be displayed in sequence.

Display will appear as shown (example)

Fig 2: VAG 1551/1552 Scan Tool Display For DTC Memory Mode 3 (2 Of 2)

Press --> button.

NOTE:

If two or more DTCs are stored, the cause of the malfunction could be attributed to the second or following malfunction. Interpreting stored DTCs. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
After malfunctions have been repaired; clear DTC memory. See CLEAR DTC MEMORY, MODE 4 and create the readiness code again. See READINESS CODE, CREATING .

Press -C- button to exit mode 3.
