Planetary gearbox, assembling

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

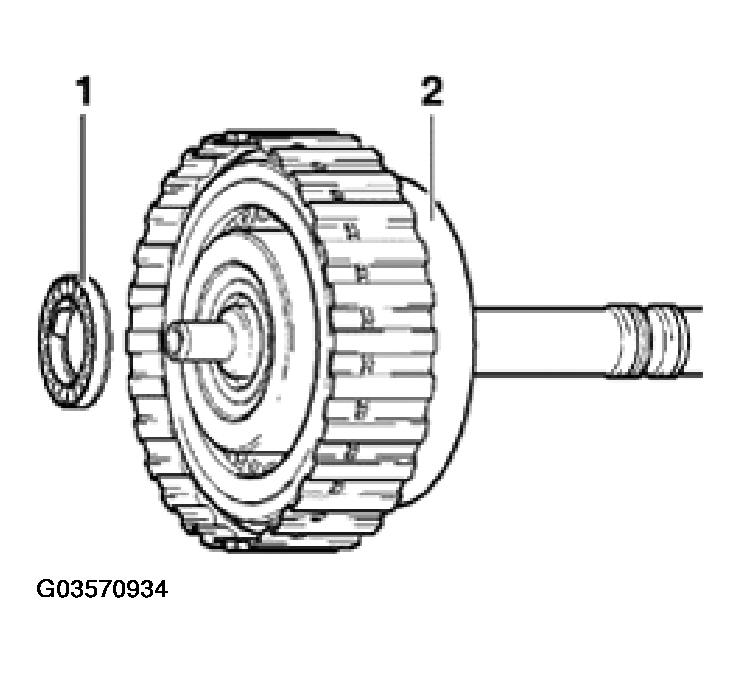

Install axial needle bearing with washer onto input gear.

NOTE: The following list refers to items in Fig 1.

- Axial needle bearing washer
- Axial needle bearing
- Axial needle bearing washer
- Install smooth side into input gear
- Input gear
(Installed in transmission housing. See PLANETARY GEARBOX DISASSEMBLY AND ASSEMBLY, OVERVIEW .)

Fig 1: Installing Axial Needle Bearing With Washer Onto Input Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

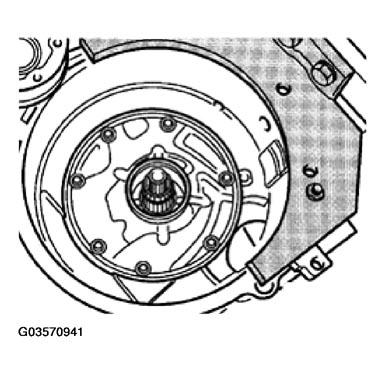

Install O-ring in planet carrier.

Fig 2: Installing O-Ring In Planet Carrier

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: After replacing planet carrier, adjust. See PLANET CARRIER, ADJUSTING .

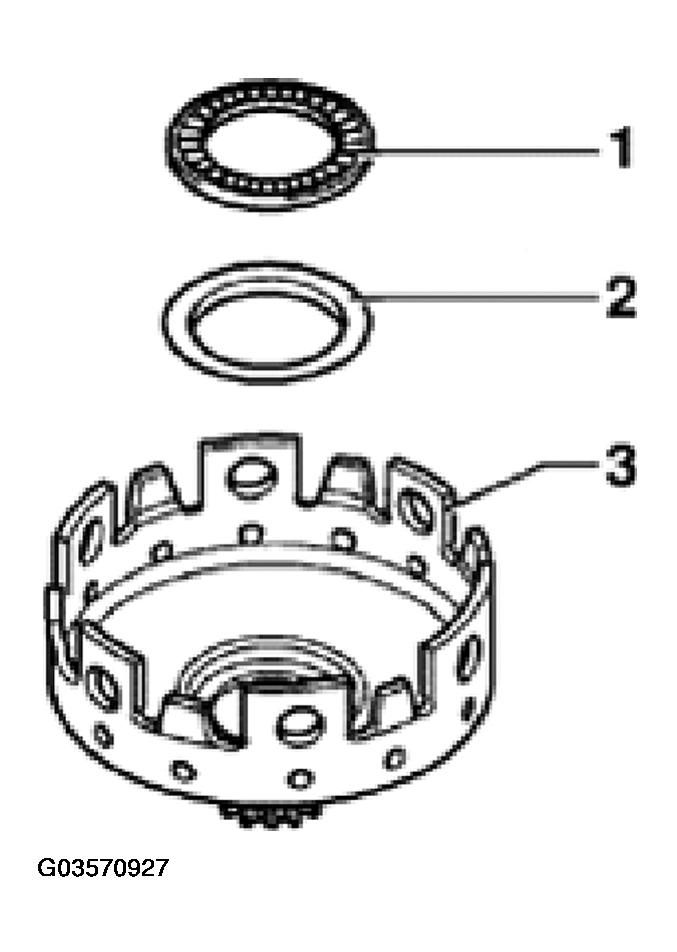

Install washer and axial needle bearing into planet carrier.

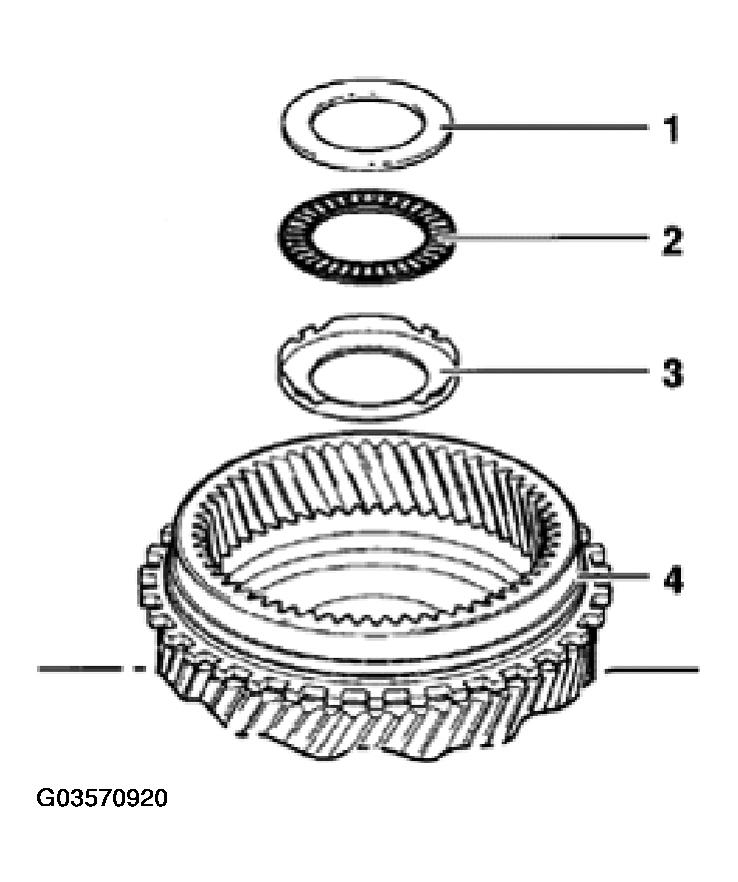

NOTE: The following list refers to items in Fig 3.

- Axial needle bearing
- Transmissions up to 12.92: outer diameter 41.0 mm (1.61 in.). See TRANSMISSIONS FOR VEHICLES WITH TRANSMISSION RANGE (TR) PROGRAM SWITCH -E122- .
- Transmissions from 01.93: outer diameter 39.1 mm (1.54 in.). See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .
- Axial needle bearing washer
- Small sun gear
- Cannot be removed for transmissions from 01.93. See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .
- Planet carrier

Fig 3: Installing Washer And Axial Needle Bearing Into Planet Carrier

Courtesy of VOLKSWAGEN OF AMERICA, INC.

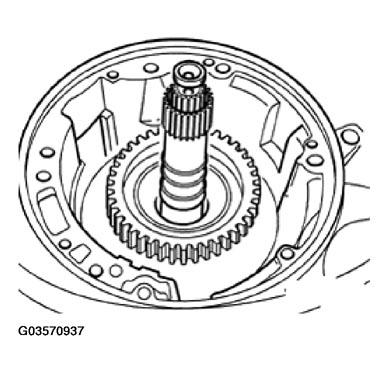

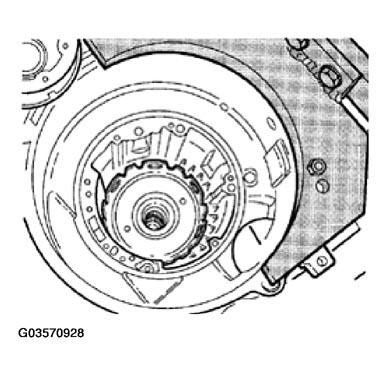

Install planet carrier into input gear.

Fig 4: Installing Planet Carrier Into Input Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

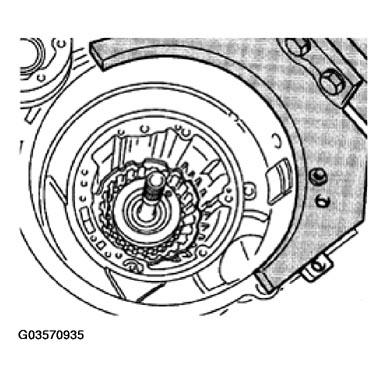

Center washer and axial needle bearing in small sun gear.
Install inner and outer -B1- plates.
Install pressure plate with flat side facing plates.

Thickness of pressure plate varies according to number of plates. See item 5 in III - Free wheel and reverse gear brake -B1-, removing and installing .

Install dished washer with convex side facing toward free wheel.

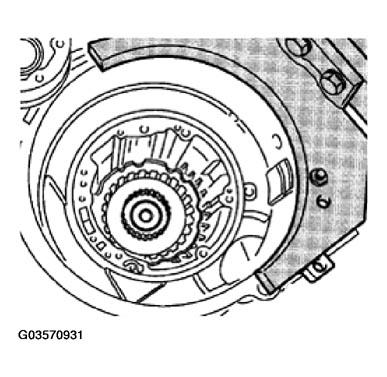

Fig 5: Installing Dished Washer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When replacing:

Transmission housing
Free wheel
Piston for reverse gear brake -B1-
or plates

Then adjust -B1-. See REVERSE GEAR BRAKE -B1-, ADJUSTING .

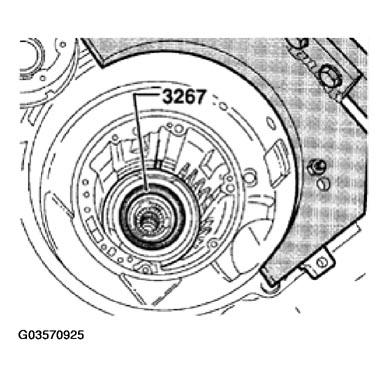

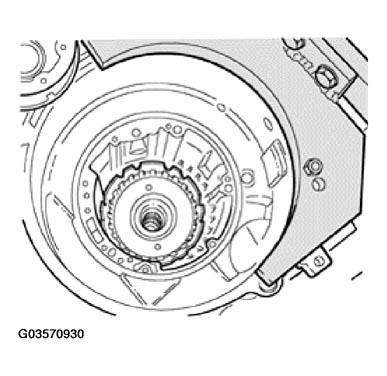

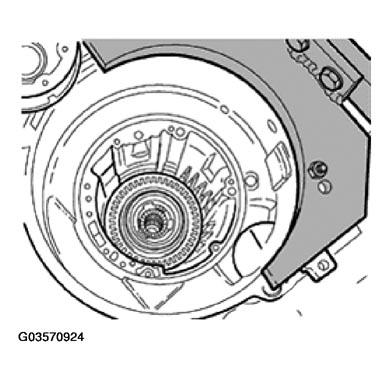

Preload free wheel rollers with 3267 assembly ring and install free wheel.

Fig 6: Preloading Free Wheel Rollers With Assembly Ring

Courtesy of VOLKSWAGEN OF AMERICA, INC.

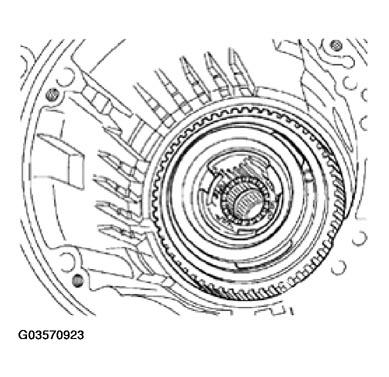

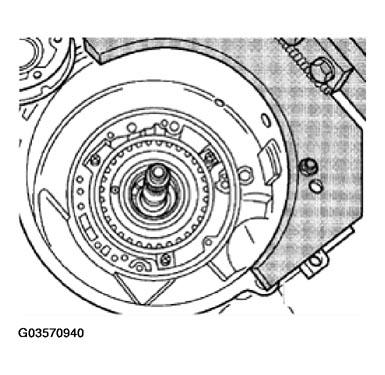

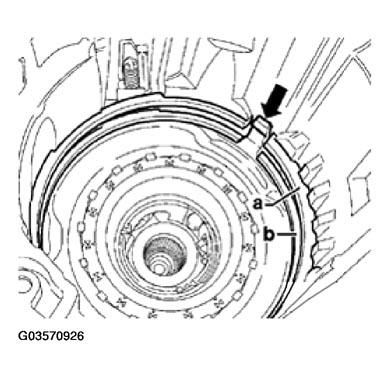

Install circlip -b- for free wheel and circlip -a- for supporting tube.
- Install so that circlip gaps are over free wheel retaining wedge (arrow).

Fig 7: Installing Circlips

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Carry out check measurement of -B1-. See REVERSE GEAR BRAKE -B1- CHECK MEASUREMENT .

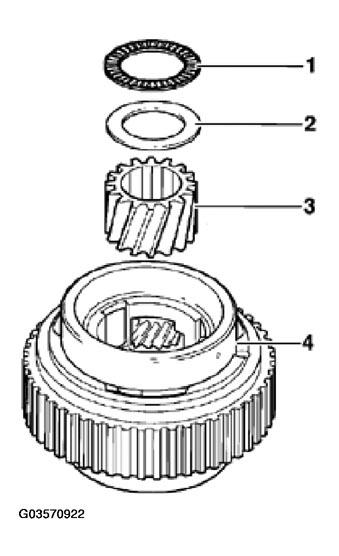

Install washer with axial needle bearing in large sun gear.

- Axial needle bearing
- Washer with shoulder
- Install with smooth side facing axial needle bearing
- Large sun gear

Fig 8: Installing Washer With Axial Needle Bearing In Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

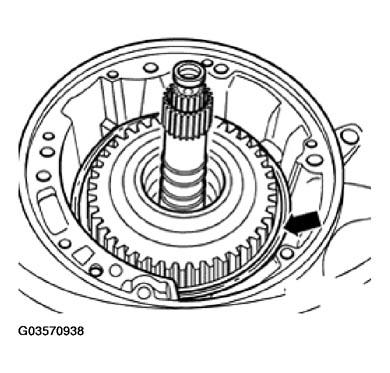

Install large sun gear with bearing.
- Center both washers with axial needle bearing between sun gears.

Fig 9: Installing Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

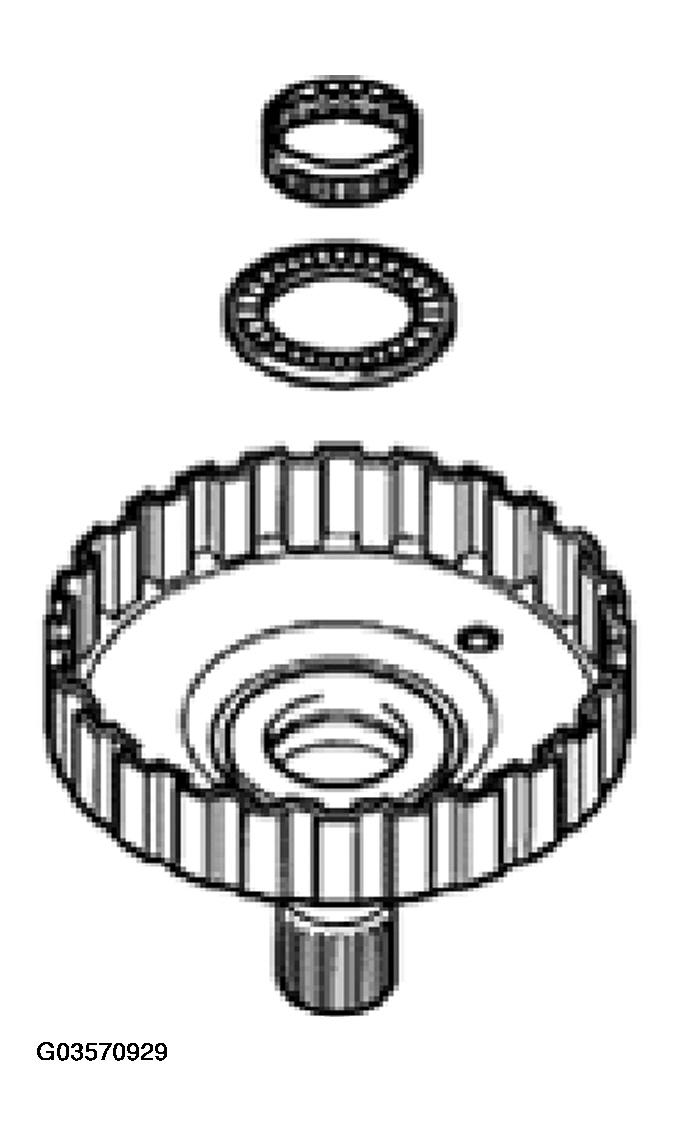

Install axial needle bearing and needle bearing in large drive shaft.

Fig 10: Installing Axial Needle Bearing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install large drive shaft with bearing.

Fig 11: Installing Large Drive Shaft With Bearing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install small drive shaft.

Fig 12: Installing Small Drive Shaft

Courtesy of VOLKSWAGEN OF AMERICA, INC.

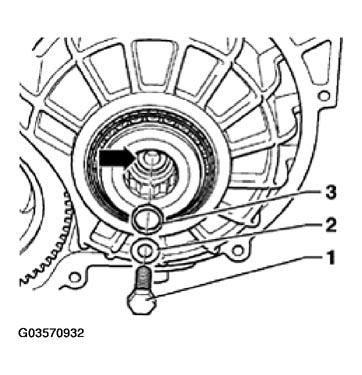

Install small drive shaft bolt -1- with washer -2- and shim -3-.
- Tightening torque: 30 Nm (22 ft lb)

Fig 13: Installing Small Drive Shaft Bolt With Washer & Shim

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Install shim -3- onto small drive shaft shoulder (arrow).
Determining shim thickness. See PLANET CARRIER, ADJUSTING .

Carry out planet carrier check measurement.

See PLANET CARRIER CHECK MEASUREMENT .

Install axial needle bearing with washers in 4th gear clutch -K3-.

- Axial needle bearing washer
- Axial needle bearing
- Axial needle bearing washer
- Install with smooth side facing -K3-.
- 3rd and 4th gear clutch -K3-

Fig 14: Installing Axial Needle Bearing Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Make sure that piston rings seat correctly.

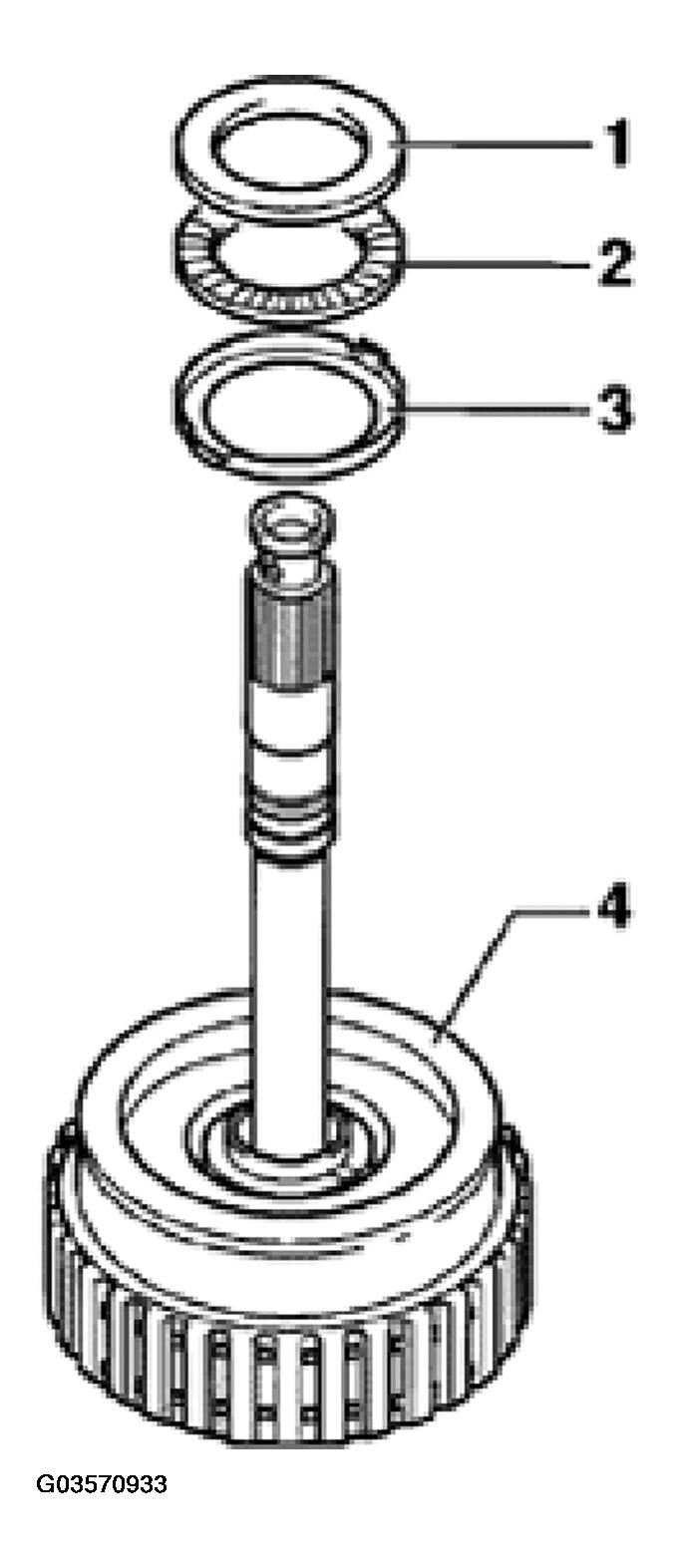

Install axial needle bearing with washer on 4th gear clutch -K3-.

- Axial needle bearing with washer
- Moisten axial needle bearing washer with ATF so that bearing -1-, while installing, sticks to -K3-.
- Install bearing washer on -K3-.
- 3rd and 4th gear clutch -K3-

Fig 15: Installing Axial Needle Bearing With Washer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install 3rd and 4th gear clutch -K3-.
- Transmissions from 01.93: -K3- clutch operates only 4th gear. See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .

Fig 16: Installing 3rd And 4th Gear Clutch

Courtesy of VOLKSWAGEN OF AMERICA, INC.

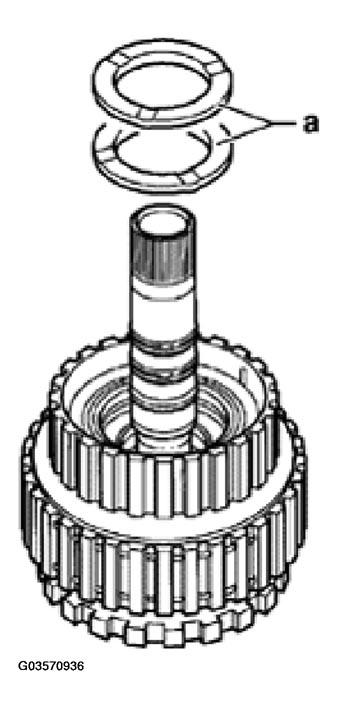

Install shims -a- in -K1-.

Fig 17: Installing Shims

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Re-measure shim when replacing -K1-, -K2- or ATF pump. See CLUTCH PLAY BETWEEN -K1- AND -K2-, ADJUSTING .
1 or 2 shims can be installed.

Install 1st to 3rd gear clutch -K1-.

Fig 18: Installing 1st To 3rd Gear Clutch

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install reverse gear clutch -K2-.

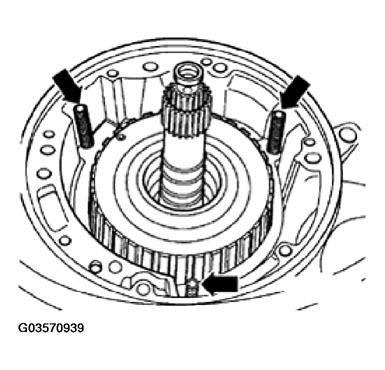

Install supporting tube for plate set -B2- (arrow) so that supporting tube groove engages in free wheel wedge.

Fig 19: Installing Supporting Tube For Plate Set

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install -B2- plates as follows:
First install a 3 mm (0.118 in.) thick outer plate.
Install three spring caps in outer plate.
Install compression springs (arrows).

Fig 20: Installing Compression Springs

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install all but the last outer plate.
Before installing the last outer plate, install three spring caps onto compression springs.

Fig 21: Installing Spring Caps

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When replacing:

Supporting tube

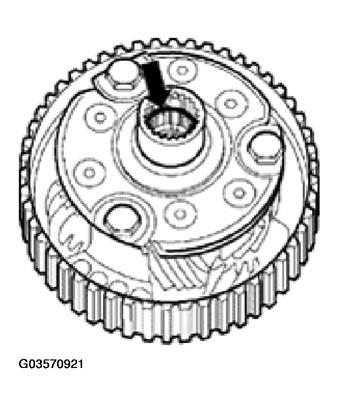

the ATF pump
or the plates

The 2nd and 4th gear brakes -B2- are to be adjusted. See 2ND AND 4TH GEAR BRAKE - B2-, ADJUSTING .

Replace corrugated washer.
Replace ATF pump seal.
Install O-ring on ATF pump.
Install ATF pump.

Fig 22: Installing ATF Pump

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Tighten bolts evenly, alternating cross-wise.
- Tightening torque: 8 Nm (71 in lb) plus an additional 1/4-turn (90 °)
- Additional 1/4-turn can be done in several stages.

NOTE:

Make sure that the O-ring is not damaged.

Carry out check measurement of clutch play. See CHECK MEASUREMENT (CLUTCH PLAY) .
Install sealing plugs, valve body and oil pan. See VALVE BODY, REMOVING AND INSTALLING .
Install cover with gasket and spacer bushings.
