Planet carrier check measurement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Insert dial indicator in VW 382/7 measuring bar and place the tip on the small input shaft bolt.

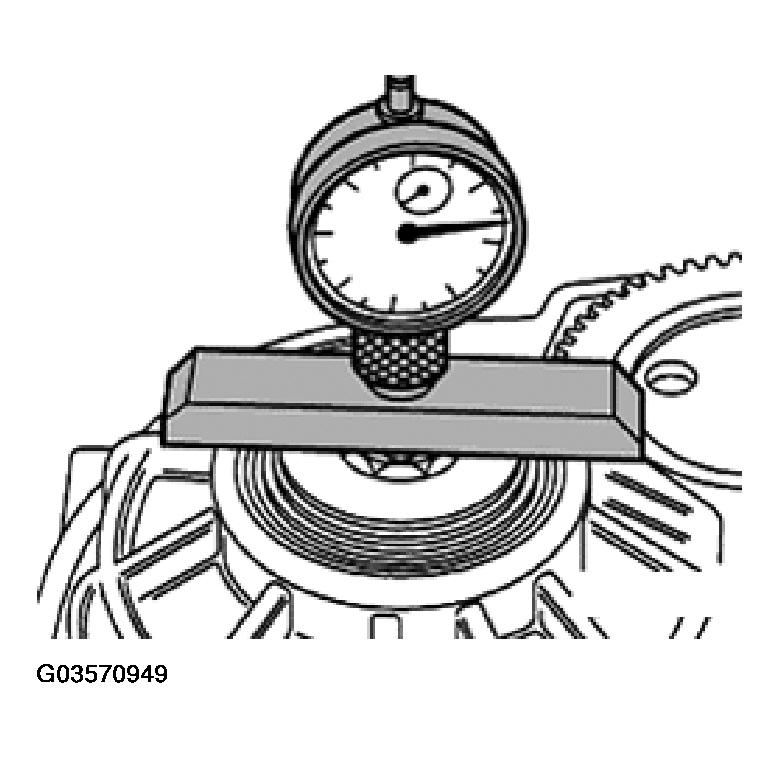

Fig 1: Inserting Dial Indicator In VW 382/7 Measuring Bar

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Move small input shaft up and down and measure axial play on dial indicator.

Specifications:

min. = 0.23 mm (0.0091 in.)
max. = 0.37 mm (0.0146 in.)

NOTE: If the planet carrier has been adjusted with reverse gear brake -B1- and free wheel removed, then install reverse gear brake -B1- before installing planet carrier. See PLANETARY GEARBOX, ASSEMBLING .
