Selector lever, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Selector lever must be removed to replace individual parts. See item 9 in Shift mechanism, disassembling and assembling .
NOTE:

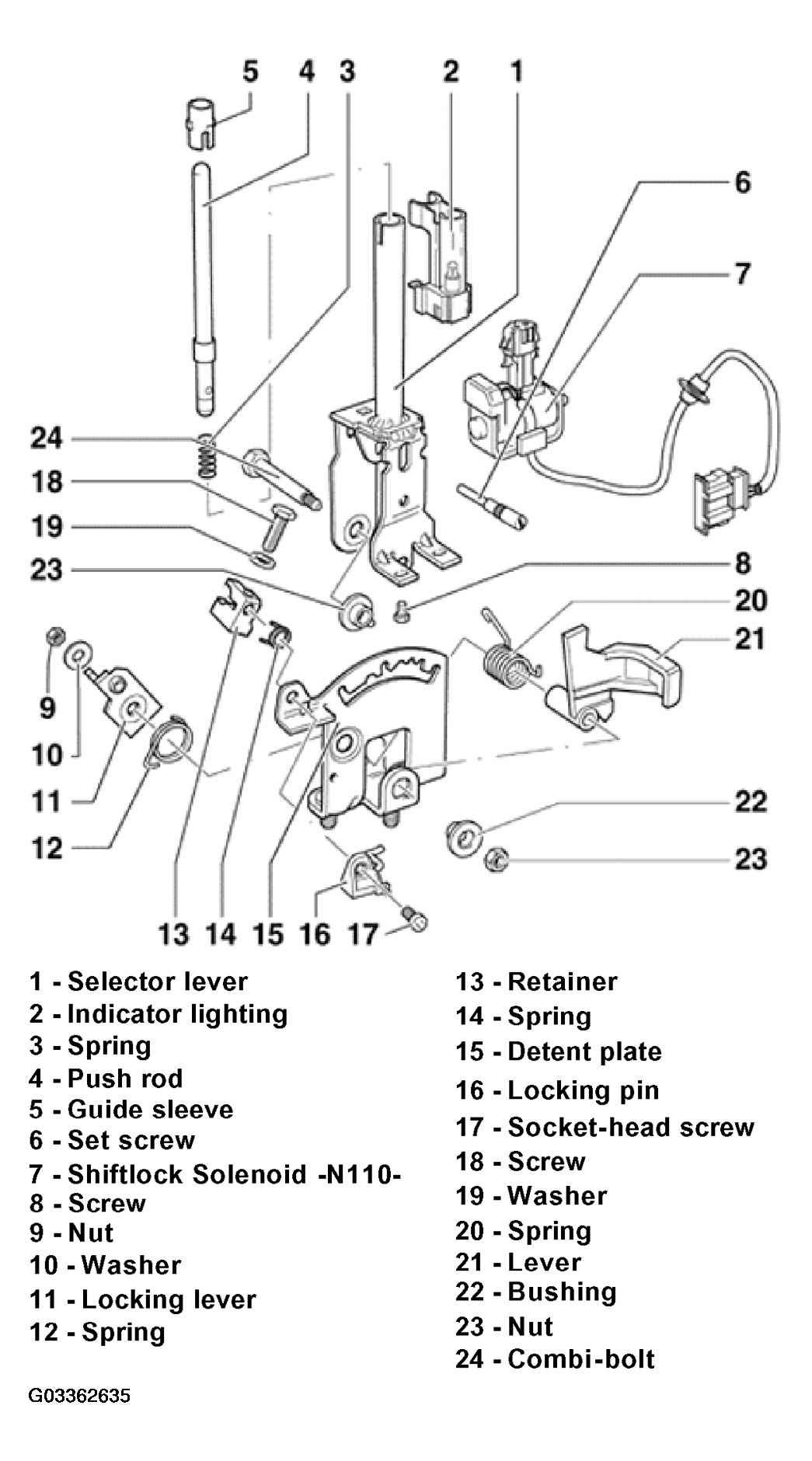

The following list refers to Fig 1.
- - Selector lever
- Assembling. See Assembling selector lever before installing .
- - Indicator lighting
- Mounting indicator lighting connector (Shiftlock Solenoid with single wiring harness). See Mounting indicator lighting connector .
- - Spring
- - Push rod
- Grease in area of sliding surfaces
- - Guide sleeve
- Fit after installing push rod
- - Set screw
- Always replace
- To remove, first remove Shiftlock Solenoid and indicator lighting -2-. Clamp set screw in vice and loosen by turning selector lever
- Install with thread-locking fluid AMV185 101 A1
- - Shiftlock Solenoid -N110-
- Can have single or two-part wiring harness
- Adjusting. See Adjusting Shiftlock Solenoid -N110- .
- Functional check. See Adjusting clearance between push rod and lever .
- Securing wiring harness to selector lever housing (Shiftlock Solenoid with single wiring harness). See Mounting wiring harness to selector lever housing .
- Secure indicator lighting connector. See Mounting indicator lighting connector .
- Can be checked electrically. See TRANSMISSION ELECTRICAL TESTING . And by reading measured value block. See Reading measured value block .
- - Screw
- Tightening torque: 3 N.m (27 in lb)
- Qty. 2
- Install with thread-locking fluid AMV185 101 A1
- - Nut
- Tightening torque: 5 N.m (44 in lb)
- Always replace
- - Washer
- - Locking lever
- For ignition lock
- Adjust together with locking cable. See LOCKING CABLE, ADJUSTING .
- - Spring
- Hook into hole of detent plate
- - Retainer
- For locking cable
- Removing and installing locking cable. See LOCKING CABLE, REMOVING AND INSTALLING .
- Adjusting locking cable. See LOCKING CABLE, ADJUSTING .
- - Spring
- For locking pin
- - Detent plate
- Assemble selector lever before fitting in selector lever housing. See Assembling selector lever before installing .
- - Locking pin
- With bracket
- - Socket-head screw
- Tightening torque: 6 N.m (53 in lb)
- - Screw
- Tightening torque: 6 N.m (53 in lb)
- - Washer
- - Spring
- Insert in selector lever together with lever - 21 -
- - Lever
- For locking in selector lever position "N" or "P"
- Adjusting. See Adjusting Shiftlock Solenoid -N110- .
- - Bushing
- - Nut
- Tightening torque: 10 N.m (7 ft lb)
- Always replace
- - Combi-bolt
- Grease shank
