Adjusting clearance between push rod and lever
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

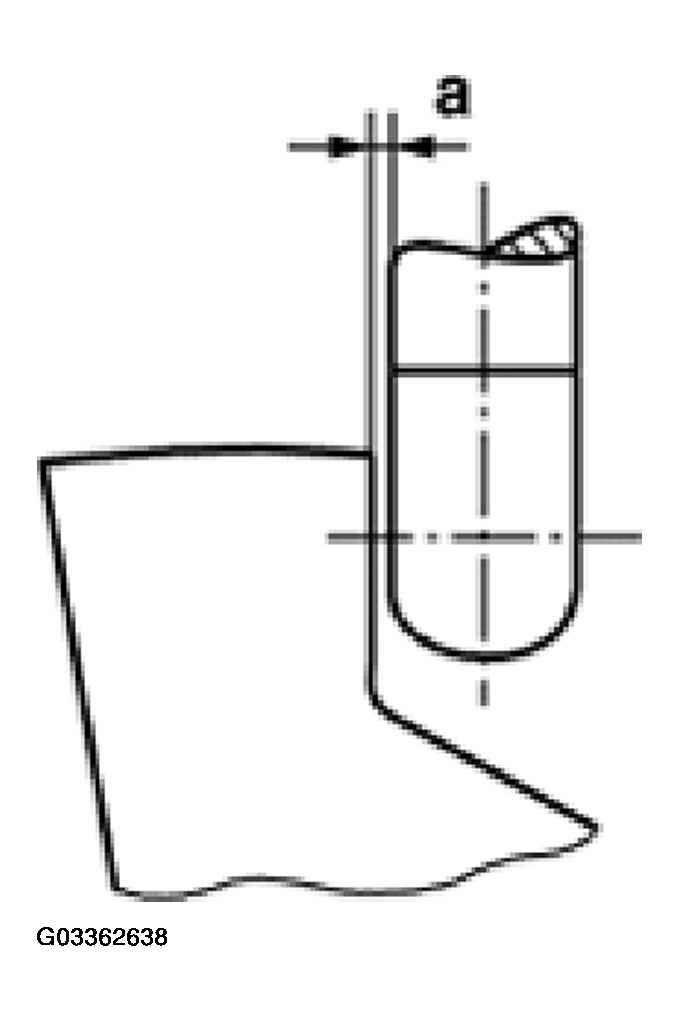

Dimension -a- 0.3 mm (0.019 in.)
Functional check
- Shift selector lever into position "P" and supply Shiftlock Solenoid -N110- with 12 Volts.
- It must not be possible to shift selector lever into a driving gear.
- Interrupt solenoid operation.
- It must now be possible to shift into driving gears.
- Push rod must not catch on lever.
- Shift selector lever into "N" and check as in "P."
- After adjusting clearance, install assembled selector lever.
