Valve gear, servicing: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Cylinder heads that have cracks between valve seats or between valve seats and spark plug threads can be re-used without reducing service life, provided the cracks do not exceed a maximum width of 0.5 mm (0.020 in.).

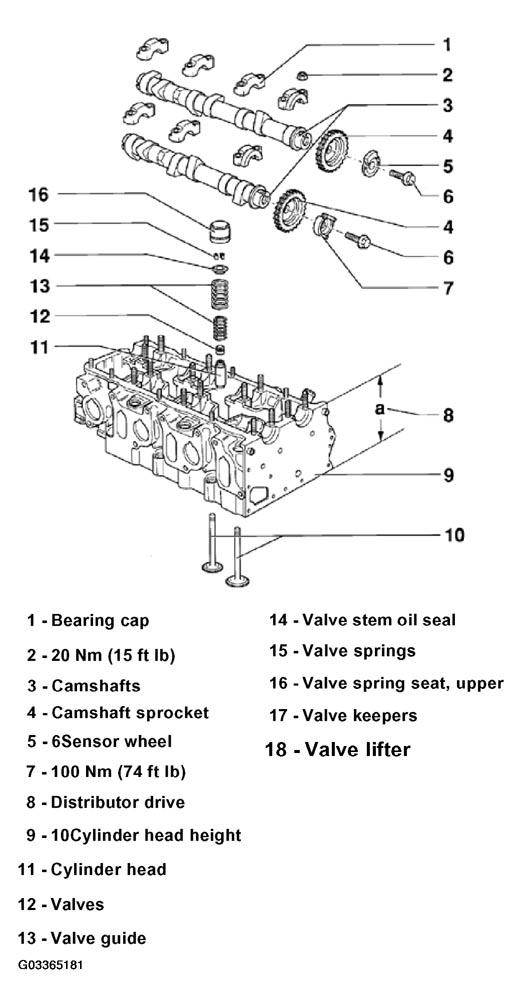

The following list pertains to Fig 1.
- Bearing cap
- Installation position, see Camshaft Bearing Cap Installation Positions
- Installation sequence, see CAMSHAFTS, REMOVING AND INSTALLING
- 20 Nm (15 ft lb)
- - Camshafts
- Checking axial clearance, see Camshafts, Checking Axial Clearance
- Removing and installing, see CAMSHAFTS, REMOVING AND INSTALLING
- Checking radial clearance with Plastigage® Wear limit: 0.1 mm (0.004 in.)
- Run-out: max. 0.01 mm (0.0004)
- Camshaft sprocket
- Removing and installing, see CAMSHAFTS, REMOVING AND INSTALLING
- Sensor wheel
- For Camshaft Position (CMP) Sensor -G40-
- When installing, contact surfaces on timing chain sprocket and sensor wheel must be dry
- Removing and installing, see CAMSHAFTS, REMOVING AND INSTALLING
- 100 Nm (74 ft lb)
- To remove and install counter-hold wrench on camshaft, see CAMSHAFTS, REMOVING AND INSTALLING
- Oil bulkhead contact surface when installing
- Distributor drive
- Not applicable for USA/Canada
- - Cylinder head height
- Minimum height: -a- = 139.5 mm (5.492 in.)
- Cylinder head
- See note in VALVE GEAR, SERVICING
- Reconditioning valve seats, see VALVE SEATS, RECONDITIONING
- Valves
- DO NOT recondition
- Only lapping is permitted
- Valve dimensions, See Valve Dimensions
- Valve guide
- Checking, see VALVE GUIDES, CHECKING AND REPLACING
- Replacing, see REPLACING
- Replacement guide with shoulder
- Valve stem oil seal
- Replacing, see VALVE STEM OIL SEALS, REPLACING
- Valve springs
- Removing and installing with cylinder head removed: use tool 2037
- Removing and installing with cylinder head installed: VALVE STEM OIL SEALS, REPLACING
- Valve spring seat, upper
- Valve keepers
- Valve lifter
- Do not interchange
- Hydraulic lifter; valve clearance taken up by engine oil pressure
- Checking, see HYDRAULIC VALVE LIFTERS, CHECKING
- Store with cam contact surface facing downward
- Before installing check camshaft axial clearance, see Camshafts, Checking Axial Clearance
- Oil contact surface
