Valve stem oil seals, replacing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
(With cylinder head installed)
- Remove camshafts, see CAMSHAFTS, REMOVING AND INSTALLING .
- Remove valve lifters (do not interchange) and store with the contact surface facing downward.
- Remove Spark Plugs.
- Set applicable piston to Bottom Dead Center (BDC).

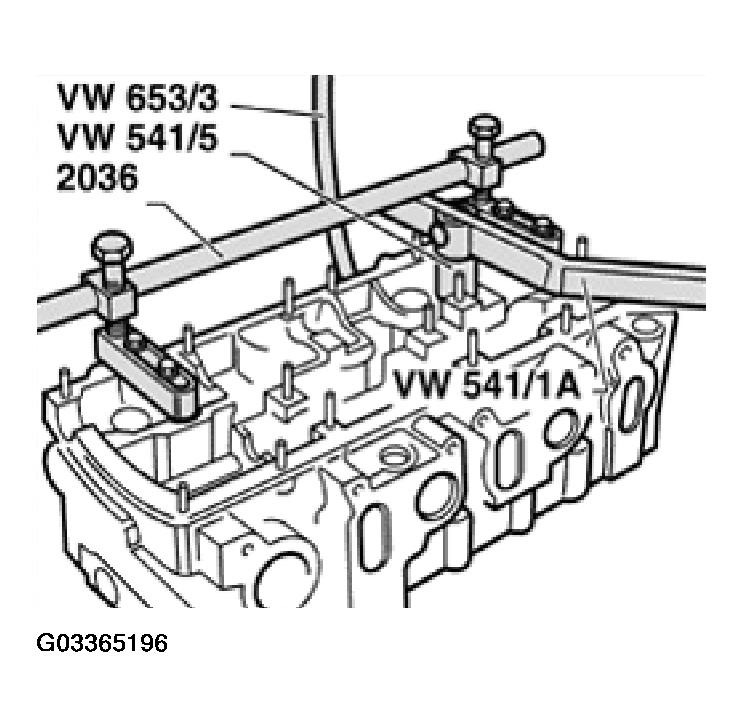

- Mount assembly tool 2036 and adjust mountings to height of camshaft bearing cap studs.
- Connect VW 653/3 compressed air hose in threaded spark plug hole and apply continuous air pressure; minimum 6 bar (87 psi).
- Remove valve springs with VW 541/1A lever and VW 541/5 adapter.
NOTE:
Tight valve keepers can be loosened by tapping lightly on the lever.

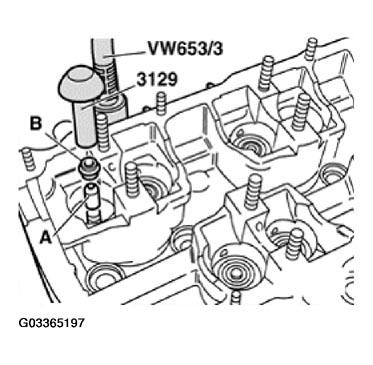

- To prevent damage to the new valve stem seals, place plastic sleeve -A- on valve stem.
- Remove valve stem seals using 3047A slide hammer.
- Oil valve stem seal -B-, place it in tool 3129 and push carefully onto the valve guide.
