Cylinder head, disassembly and assembly: Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Checking compression, see COMPRESSION, CHECKING

NOTE:
  • When installing an exchange cylinder head with camshaft, the contact surfaces between valve lifters and cam lobes must be oiled after installation.
  • The plastic protectors fitted to protect the open valves must only be removed immediately before installing the cylinder head.
  • When replacing the cylinder head the engine coolant must be completely replaced.

The following list pertains to Fig 1.

  1. 5 Nm (44 in lb)
  2. Ignition cable guide
  3. 25 Nm (18 ft lb)
  4. Right rear support
    • Between upper intake manifold and cylinder head
    • With bracket for fuel lines
  5. Bracket
    • For fuel lines
  6. Flame trap coil
  7. Circlip
  8. Cap
    • Replace seal if damaged
  9. 10 Nm (7 ft lb)
  10. Bracket
    • For electrical wiring
  11. Cylinder head cover
  12. Cylinder head cover gasket
    • Replace if damaged
    • Note installation position
  13. O-ring
    • Always replace
    • Oil before installing and insert in camshaft sprocket cover, item - 21 -
  14. Spacer ring
  15. O-ring
    • Always replace
    • Oil before installing
  16. Camshaft Position (CMP) Sensor (G40)
    • Checking:

    See DIAGNOSTIC TROUBLE CODE (DTC) TABLE

  17. Bracket
    • For 42-pin connector and After-Run Coolant Pump (V51)
  18. Ignition Coil (N152)
    • Checking:

    See DIAGNOSTIC TROUBLE CODE (DTC) TABLE

  19. Chain tensioner
    • Tightening torque: 30 Nm (22 ft lb)
    • For double chain
    • Bleed before installing, see Bleeding double chain chain tensioner .
    • Rotate engine (crankshaft) only when chain tensioner is installed
  20. Seal
    • Always replace
  21. Camshaft sprocket cover
    • Can be removed and installed with cylinder head installed
    • Coat sealing surfaces with AMV 188 001 02
    • If only the camshaft sprocket cover has been removed, prepare cylinder head gasket for assembly, see Preparing Cylinder Head Gasket For Assembly
  22. - Cylinder head gasket
    • Always replace
    • When replacing: also replace engine coolant
  23. - Cylinder head
  24. - Cylinder head bolt
    • ALWAYS REPLACE
  25. Gasket
    • For lower intake manifold
    • Always replace
  26. Lifting eye
  27. Intake manifold, lower
  28. Poly-ribbed belt tensioner
  29. Gasket
    • For upper intake manifold
    • Always replace
  30. Intake manifold, upper
    • First tighten to lower intake manifold, then tighten both rear supports, items - 4 - and- 32 -
  31. Intake Air Temperature (IAT) Sensor -G72-
    • Tightening torque: 10 Nm (7 ft lb)
    • Checking:

    See DIAGNOSTIC TROUBLE CODE (DTC) TABLE

  32. Support, left rear
    • Between upper intake manifold and cylinder head
    • With engine Ground (GND) connection
  33. Cover
    • Above upper intake manifold

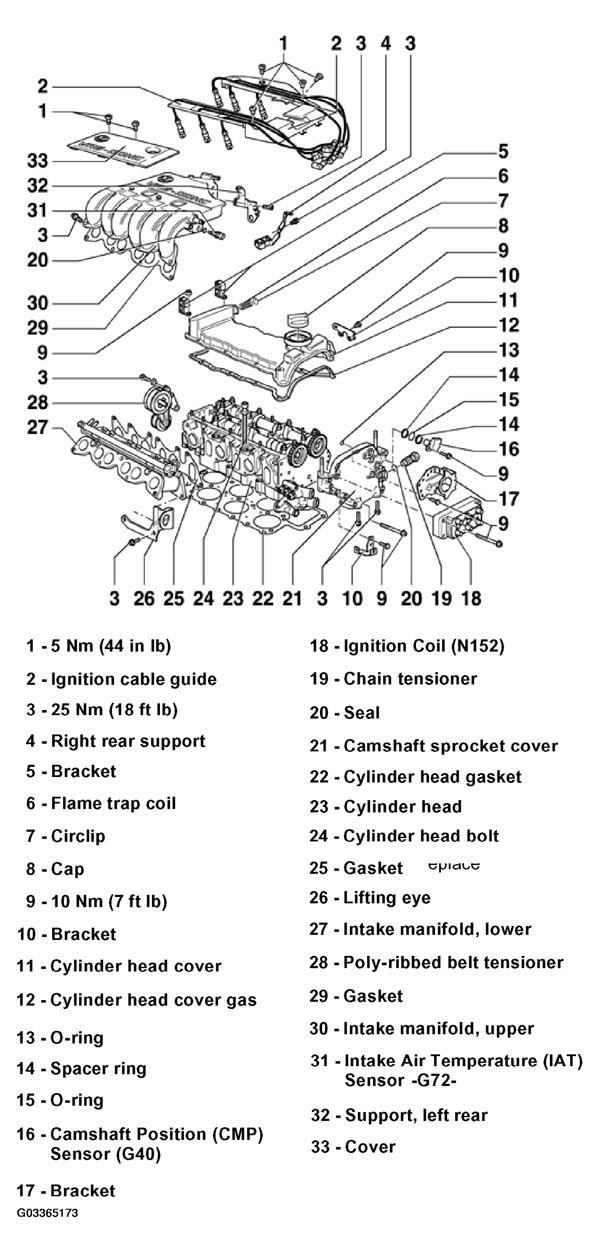

    Fig 1: Identifying Cylinder Head Components
    G03365173
