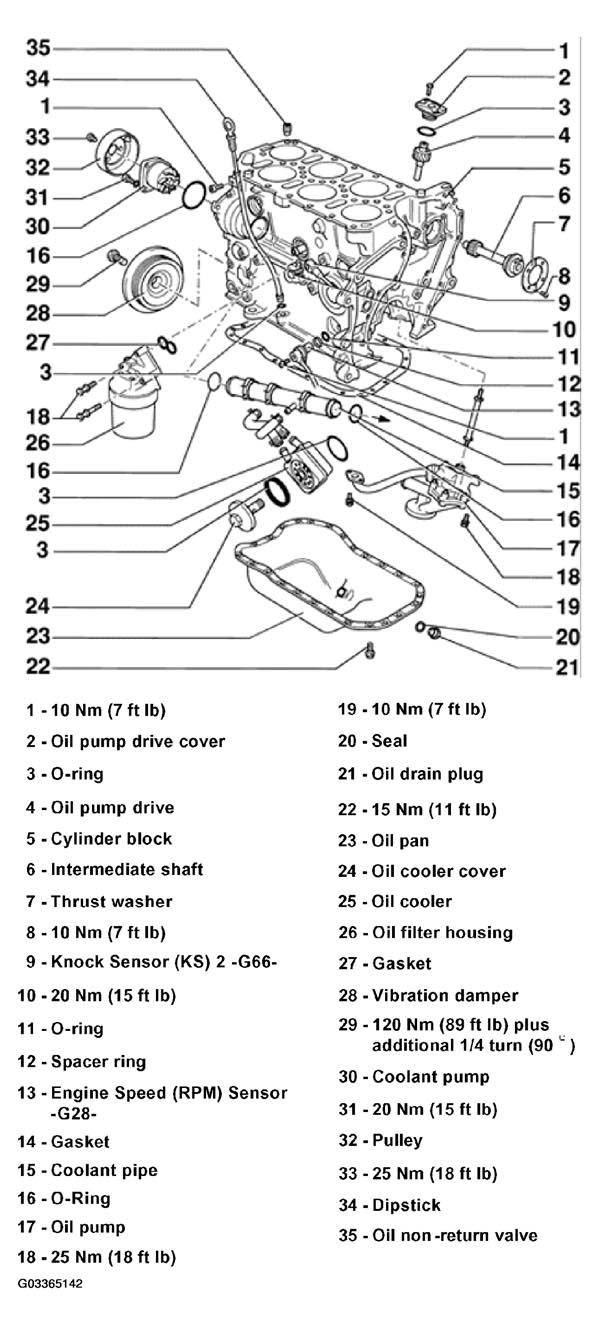

The following list pertains to Fig 1.
- 10 Nm (7 ft lb)
- Oil pump drive cover
- O-ring
- Always replace
- Oil before assembling
- Oil pump drive
- Cylinder block
- Removing and installing sealing flange and flywheel/drive plate, see SEALING FLANGE AND FLYWHEEL/DRIVE PLATE, REMOVING AND INSTALLING
- Removing and installing crankshaft, see CRANKSHAFT, REMOVING AND INSTALLING
- Disassembling and assembling pistons and connecting rods PISTONS AND CONNECTING RODS, DISASSEMBLING AND ASSEMBLING
- Intermediate shaft
- Thrust washer
- 10 Nm (7 ft lb)
- Install with locking fluid "D6"
- Knock Sensor (KS) 2 -G66-
- Checking:
- 20 Nm (15 ft lb)
- Tightening torque influences the function of the Knock Sensor
- O-ring
- Replace if damaged
- Spacer ring
- Engine Speed (RPM) Sensor -G28-
- Checking:
- When installing coat contact surface of sensor with AMV 174 004 01
- Gasket
- Replace if damaged
- Before installing gasket, coat oil pan flange/cylinder block flange with "D2"
- Coolant pipe
- To thermostat housing, see PART III , item - 19 -
- Removing and installing, See COOLING SYSTEM, ENGINE SIDE COMPONENTS, REMOVING AND INSTALLING
- O-Ring
- Always replace
- Oil pump
- Disassembling and assembling, see OIL PUMP, DISASSEMBLING AND ASSEMBLING
- Coat oil pressure pipe connection on cylinder block and oil pump housing with AMV 188 001 02 sealant
- 25 Nm (18 ft lb)
- 10 Nm (7 ft lb)
- Insert with locking fluid "D6"
- Seal
- Always replace
- Oil drain plug
- Tightening torque: 30 Nm (22 ft lb)
- Replace if leaking. See Parts Catalog for correct application. In some cases, seal and drain plug are combined; do not interchange with separate seal and drain plug.
- 15 Nm (11 ft lb)
- Oil pan
- Clean sealing surface before installing
- Oil cooler cover
- Tightening torque: 25 Nm (18 ft lb)
- Oil cooler
- Coat contact area outside seal with AMV 188 100 02
- Ensure clearance to adjacent components
- Precautions for cleaning/replacing, see ENGINE, DISASSEMBLING AND ASSEMBLING
- Oil filter housing
- Disassembling and assembling, See OIL FILTER HOUSING, DISASSEMBLING AND ASSEMBLING
- Gasket
- Always replace
- Note installation position
- Oil before installing
- Vibration damper
- Removing and installing poly-ribbed belt, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- 120 Nm (89 ft lb) plus additional 1/4 turn (90°)
- Always replace
- Counter-hold with tool 3273 to loosen and tighten
- Coolant pump
- Check shaft for ease of movement
- Removing and installing, See COOLING SYSTEM, ENGINE SIDE COMPONENTS, REMOVING AND INSTALLING
- 20 Nm (15 ft lb)
- Pulley
- For coolant pump, item -30 -
- 25 Nm (18 ft lb)
- Use VAG 1590 to loosen and tighten
- Modify VAG 1590 water pump spanner
- Dipstick
- Oil level must not be above the max. mark
- Oil non-return valve
- Tightening torque: 5 Nm (44 in lb)
- Note installation position
- Clean if badly contaminated
- Precautions for cleaning/replacing,, see ENGINE, DISASSEMBLING AND ASSEMBLING
