Crankshaft, removing and installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

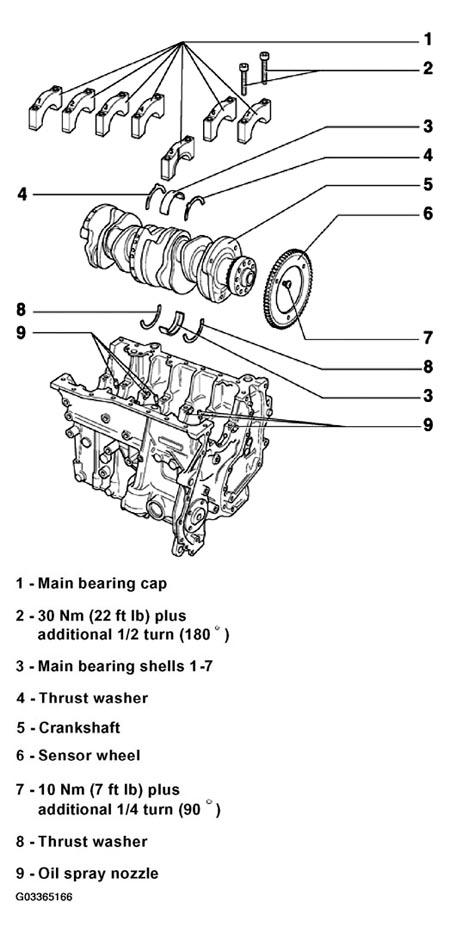

The following list pertains to Fig 1.
- Main bearing cap
- Main bearing cap 1: vibration damper end
- Main bearing cap 5 with recesses for thrust washers
- Bearing shell retaining lugs in cylinder block and main bearing caps must be on the same side
- 30 Nm (22 ft lb) plus additional 1/2 turn (180°)
- Always replace
- Additional 1/2 turn (180°) may be done in two steps of 1/4-turn (90°)
- Main bearing shells 1 -7
- Without oil groove: for main bearing cap
- With oil groove: for cylinder block
- Do not interchange used bearing shells (mark positions before disassembly)
- Thrust washer
- For main bearing cap 5
- Note installation positions
- Crankshaft
- Reconditioning is not permitted
Axial clearance:
- New: 0.07 -0.23 mm (0.0028 - 0.0091 in.)
- Wear limit: 0.30 mm (0.0118 in.)
Check radial clearance with Plastigage®
- New: 0.02 -0.06 mm (0.0008 -0.0024 in.)
- Wear limit: 0.10 mm (0.0039 in.)
Crankshaft dimensions:
- Main journal: 59.958-59.978 mm (2.36055 -2.36134 in.)
- Connecting rod journal: 53.958 - 53.978 mm (2.12433-2.12512 in.)
CAUTION: DO NOT rotate crankshaft when checking radial clearance. - Reconditioning is not permitted
- Sensor wheel
- For Engine Speed (RPM) Sensor -G28-
- Always replace
- 10 Nm (7 ft lb) plus additional 1/4 turn (90 °)
- Always replace
- Thrust washer
- For cylinder block, main bearing 5
- Note installation position
- Oil spray nozzle
- Mounted near crankshaft main bearings 2 -7
- For piston cooling
- Opening pressure: 2.0 bar (29 psi)
- Removing and installing, see 13
- Cleaning/replacing, see Caution in ENGINE, DISASSEMBLING AND ASSEMBLING
