Engine, removing and installing, additional information and removal instructions for vehicles with A/C
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
DO NOT open the air A/C refrigerant circuit. Refrigerant lines bend easily.
DO NOT release A/C refrigerant into the atmosphere.
Opening of the A/C refrigerant circuit can only be carried out in workshops with trained technicians using the proper tools and equipment for handling the A/C refrigerant.
DO NOT release A/C refrigerant into the atmosphere.
Opening of the A/C refrigerant circuit can only be carried out in workshops with trained technicians using the proper tools and equipment for handling the A/C refrigerant.
To remove and install the engine without opening the A/C refrigerant circuit:
- Loosen air conditioner receiver/dryer and let hang free (do not disconnect lines).
- Remove retaining clamp(s) from A/C refrigerant pipes.
- Remove poly-ribbed belt, See POLY-RIBBED BELT, REMOVING AND INSTALLING .
- Remove lock carrier with attachments:
- Remove air conditioner compressor from mounts without disconnecting A/C refrigerant lines:
For models before 8.93, see A/C COMPRESSOR BRACKET, REMOVING AND INSTALLING
For models after 8.93, see A/C COMPRESSOR BRACKET, REMOVING AND INSTALLING

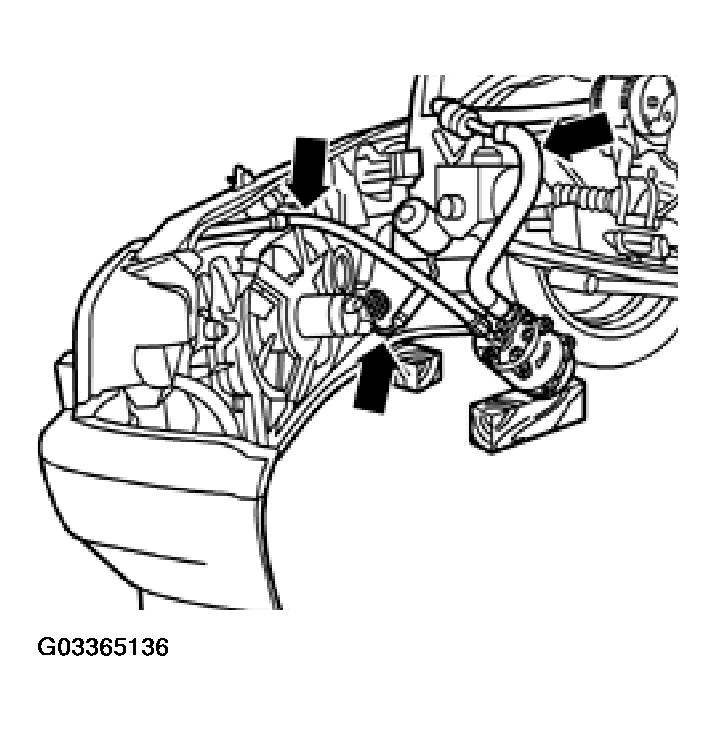

- Remove air conditioner compressor with radiator and condenser and lay to one side with lock carrier so that the A/C refrigerant hoses -arrows- are not stressed.
