A/C compressor bracket, removing and installing - 6-cyl. VR6 (engine code AAA) Up To 08.93
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The A/C compressor mounting bracket can be removed and installed without discharging the A/C system.

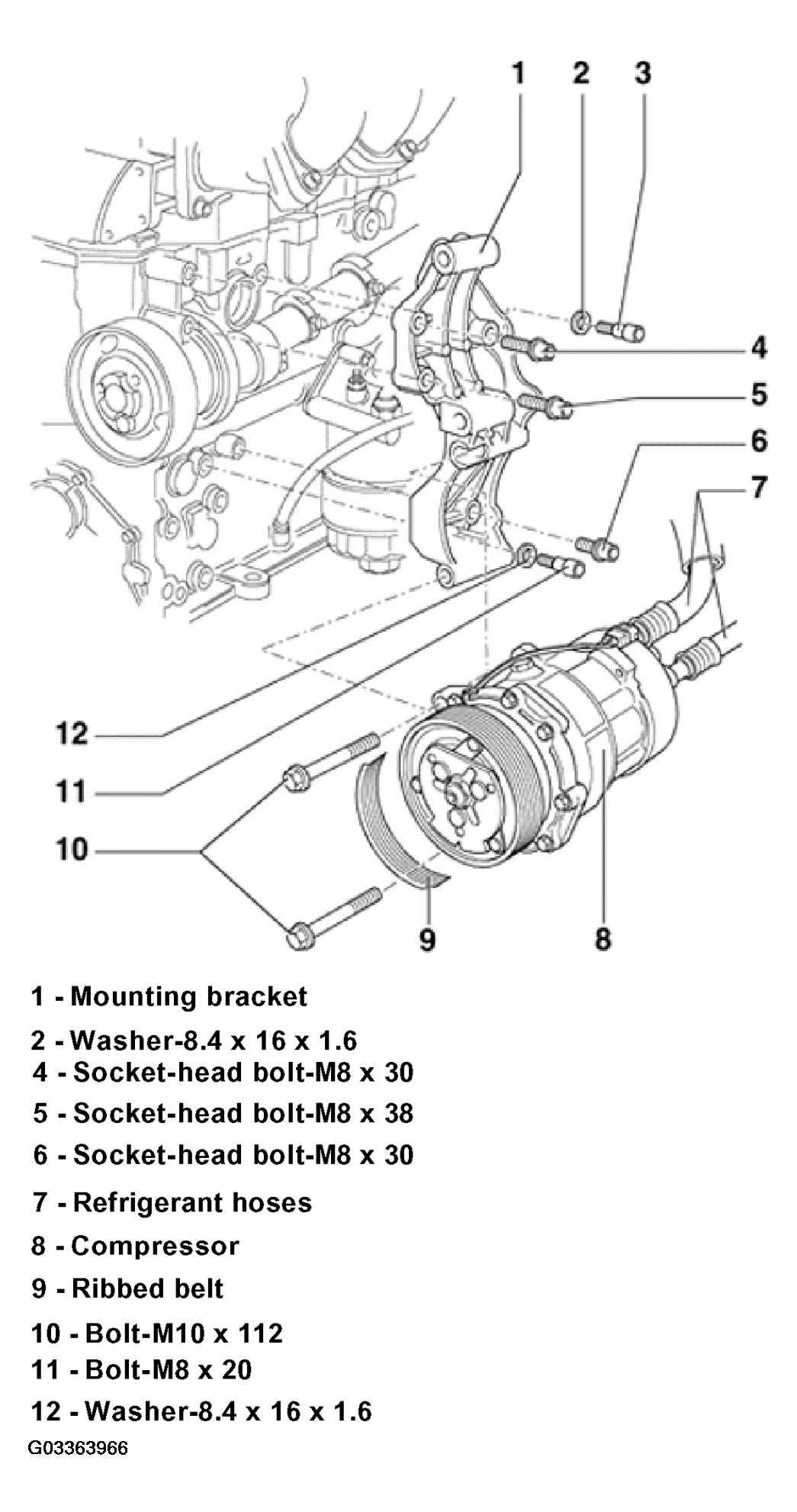

The following list pertains to Fig 1.
- Mounting bracket
- For 08.93 and up, refer to A/C compressor bracket, removing and installing -6-cyl. VR6 (engine code AAA) 08.93
- For Generator (GEN) and A/C compressor
Removing:
- Remove A/C compressor -8-.
- Remove generator, see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY .
Installing:
- First install bolts -3- and -11-.
Replacing:
- Remove power steering pump bracket, see POWER STEERING PUMP, RESERVOIR AND HYDRAULIC LINES, SERVICING .
- Washer-8.4 x 16 x 1.6
- Bolt-M8 x 28
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 30
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 38
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 30
- 25 N.m (18 ft lb)
- Refrigerant hoses
- Compressor
Removing:
- Remove front bumper.
- For Golf, GTI or Jetta, see FRONT BUMPER, REMOVING AND INSTALLING
- For Cabrio, see FRONT BUMPER, SERVICING
- Loosen lock carrier (radiator support) and pull forward.
- Remove headlight housing, see HEADLIGHTS (GOLF, JETTA & CABRIO TO 10.98), SERVICING or HEADLIGHTS AND FRONT TURN SIGNALS, (CABRIO FROM 10.98), SERVICING .
- Remove ribbed belt -9-.
- Remove Generator (GEN), see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY .
- Loosen bolts - 10 - and drive threaded sleeves back from compressor.
- Remove bolts -10- and remove compressor.
- Remove front bumper.
- Ribbed belt
- Removing/installing, POLY-RIBBED BELT, REMOVING AND INSTALLING
- Bolt-M10 x 112
- 45 N.m (33 ft lb)
- Bolt-M8 x 20
- 25 N.m (18 ft lb)
- Washer-8.4 x 16 x 1.6
