A/C compressor bracket, removing and installing -6-cyl. VR6 (engine code AAA) 08.93 And Up
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The A/C compressor mounting bracket can be removed and installed without discharging the A/C system.

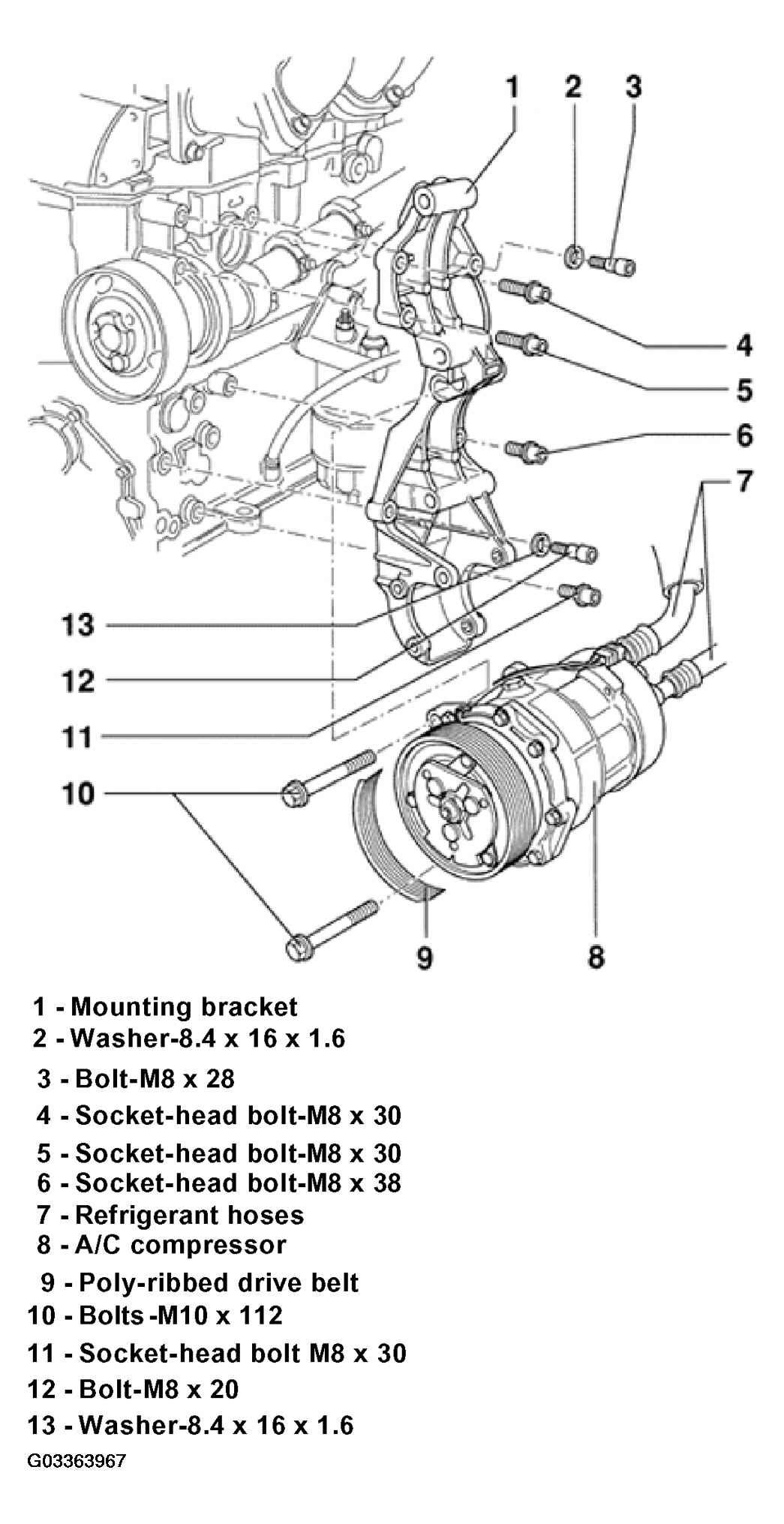

The following list pertains to Fig 1.
- Mounting bracket
- For engines up to 08.93, refer to A/C COMPRESSOR BRACKET, REMOVING AND INSTALLING - 6-CYL. VR6 (ENGINE CODE AAA) 08.93
- For Generator (GEN), A/C compressor and power steering pump
Removing:
- Remove A/C compressor -8- from bracket.
- Remove Generator (GEN), see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY .
- Remove power steering pump.
- Remove bracket.
Installing:
- First install bolts -3- and -12-.
- Washer-8.4 x 16 x 1.6
- Bolt-M8 x 28
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 30
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 30
- 25 N.m (18 ft lb)
- Socket-head bolt-M8 x 38
- 25 N.m (18 ft lb)
- Refrigerant hoses
- A/C compressor
Removing from bracket:
- Remove front bumper.
- For Golf, GTI or Jetta, see FRONT BUMPER, REMOVING AND INSTALLING
- For Cabrio, see FRONT BUMPER, SERVICING
- Loosen lock carrier (radiator support) and pull forward.
- Remove headlight housing, see HEADLIGHTS (GOLF, JETTA & CABRIO TO 10.98), SERVICING or HEADLIGHTS AND FRONT TURN SIGNALS, (CABRIO FROM 10.98), SERVICING .
- Remove poly-ribbed belt -9-.
- Remove Generator (GEN), see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY .
- Loosen A/C compressor bolts -10- approx. 2 turns and drive threaded sleeves back from compressor.
- Remove bolts -10- and remove compressor.
- Remove front bumper.
- Poly-ribbed drive belt
- Removing and installing, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- Bolts -M10 x 112
- 45 N.m (33 ft lb)
- Socket-head bolt M8 x 30
- 25 N.m (18 ft lb)
- Bolt-M8 x 20
- 25 N.m (18 ft lb)
- Washer-8.4 x 16 x 1.6
