Camshaft, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When installing the camshaft, the cam lobes for cylinder 1 must point upward.

When installing the camshaft bearing caps, note the bearing offset.
Before installation, fit bearing cap to determine installation position. Aee CAMSHAFT IDENTIFICATION AND TIMING and Figure.

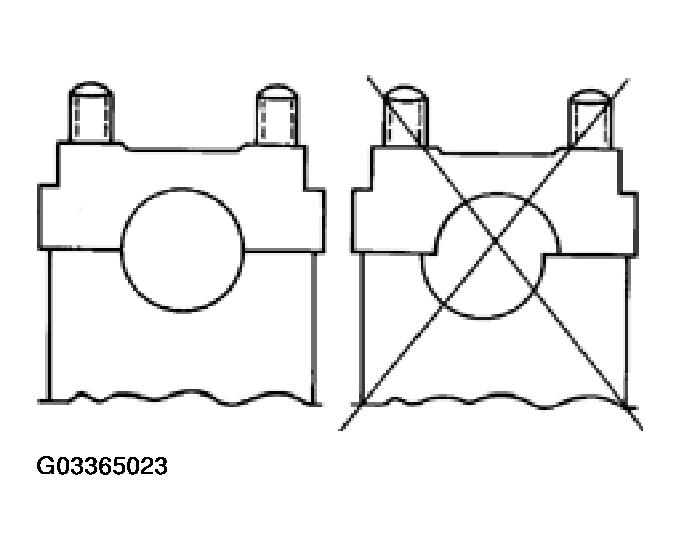

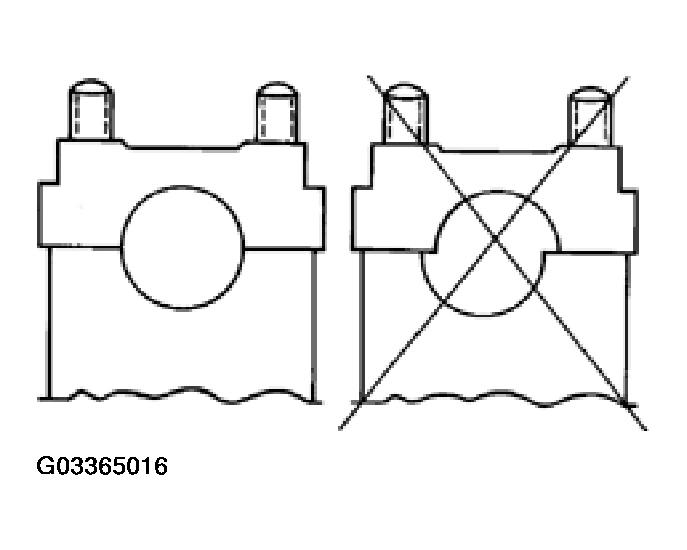

Fig 1: Positioning Camshaft Bearing Caps
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Oil contact surfaces of camshaft.
Tighten bearing caps 2 and 4 alternately and diagonally.
Tightening torque: 20 Nm (15 ft lb)
Install bearing caps 1, 3 and 5.
Tightening torque: 20 Nm (15 ft lb)
Install Woodruff key in camshaft.
Install camshaft drive belt sprocket using 3036 retainer.
Tightening torque: 80 Nm (59 ft lb)
Install drive belt and adjust tension, see DRIVE BELT, REMOVING, INSTALLING AND ADJUSTING TENSION .

NOTE: Removing and installing thermo tension roller for model years 1997 and beyond, see THERMO TENSION ROLLER (1997 AND UP), REMOVING AND INSTALLING .
