Camshaft identification and timing
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Identification
- Cam lobe base circle -a-: 34 mm (1.338 in.)

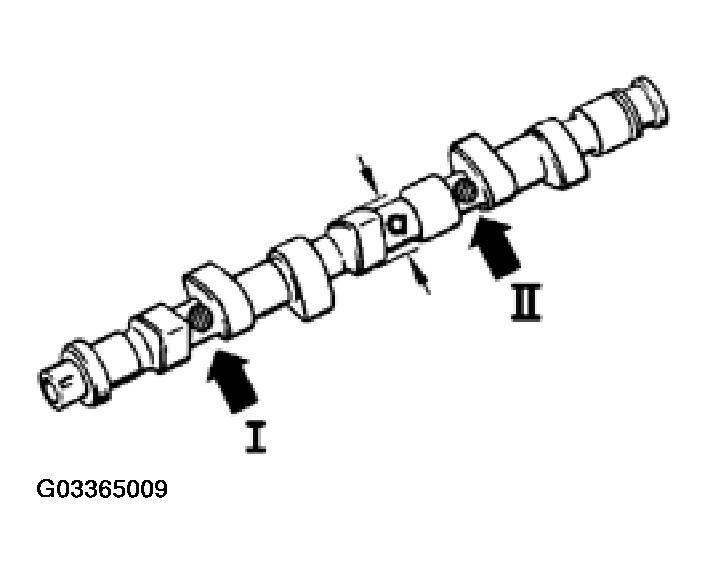

Identification numbers and letters are stamped between intake and exhaust cam lobes:
- Cylinder No. 1, marking at arrow I is "B"
- Cylinder No. 3, marking at arrow II is "037"
Timing at 1 mm valve stroke:
- Intake opens: 6.3° after TDC
- Intake closes: 44.5° after BDC
- Exhaust opens: 41.7° before BDC
- Exhaust closes: 3.5° before TDC
