Cylinder head, servicing: Notes
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Compression pressure, checking, see COMPRESSION PRESSURE, CHECKING .
- When installing a reconditioned cylinder head, oil contact surfaces between valve lifters and cam lobes after installing the head.
- Remove plastic washers that are supplied to protect the open valves only before actually installing the cylinder head.
- When replacing the cylinder head, replace the engine coolant.

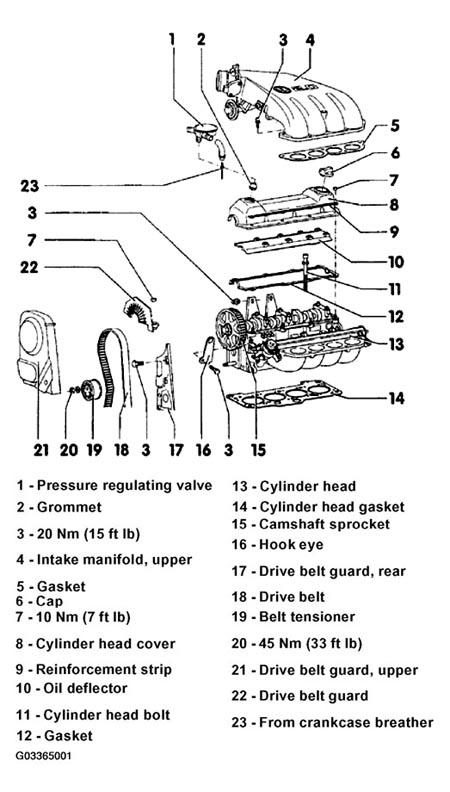

The following list pertains to Fig 1.
- Pressure regulating valve
- For crankcase breather
- Grommet
- 20 Nm (15 ft lb)
- Intake manifold, upper
- Gasket
- Always replace
- Cap
- Replace gasket if damaged
- 10 Nm (7 ft lb)
- Cylinder head cover
- Reinforcement strip
- Oil deflector
- Cylinder head bolt
- Always replace
- Loosening and tightening sequence, see CYLINDER HEAD, INSTALLING
- Gasket
- Always replace
- Cylinder head
- Installing, see CYLINDER HEAD, INSTALLING

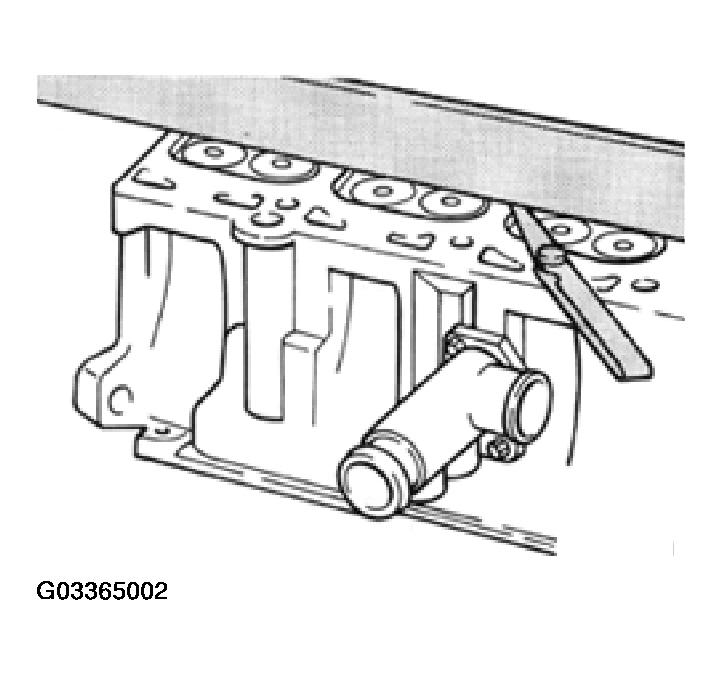

- Checking for distortion, see Figure
- When replacing head, replace engine coolant
- Cylinder head gasket
- Always replace
- When replacing gasket, replace engine coolant
- Camshaft sprocket
- Note position when installing drive belt, see ENGINE - CRANKSHAFT, CYLINDER BLOCK .
- Hook eye
- Drive belt guard, rear
- Drive belt
- Check for wear
- Do not kink
- Removing, installing and adjusting tension, see DRIVE BELT, REMOVING, INSTALLING AND ADJUSTING TENSION
- Belt tensioner
- 45 Nm (33 ft lb)
- Drive belt guard, upper
- Drive belt guard
- From crankcase breather
