Cylinder head, installing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Engine cold
Pistons not at Top Dead Center (TDC)

Install cylinder head gasket.
Install cylinder head (note centering pins in cylinder block).
Install cylinder head bolts and tighten by hand.
Tighten cylinder head in four stages in the following sequence:
First tighten using torque wrench.
- Stage II = 40 Nm (30 ft lb)
- Stage II = 60 Nm (44 ft lb)
Then turn further using standard wrench.
- Stage III = 1/4 turn (90°)
- Stage IV = 1/4 turn (90°)

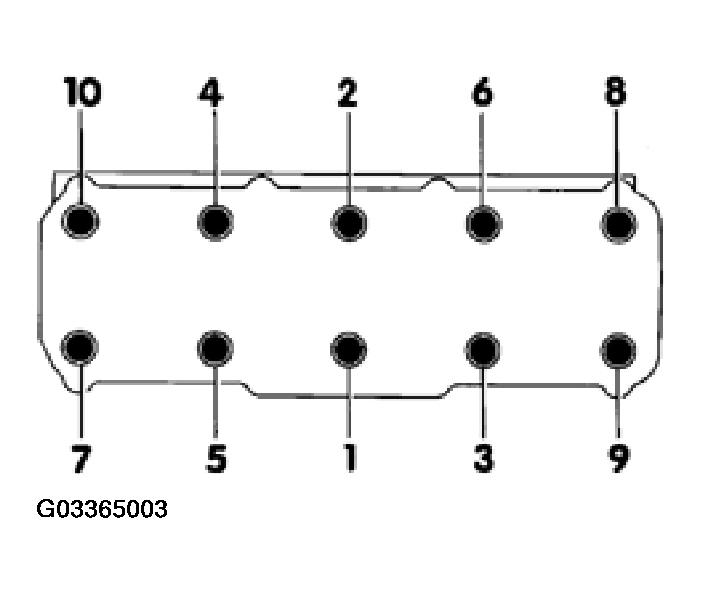

Fig 1: Identifying Cylinder Head Bolt Tightening Sequence
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Loosen cylinder head bolts in reverse order.
After repairs are complete, additional retorquing is not necessary.
