Crankshaft, removing and installing
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

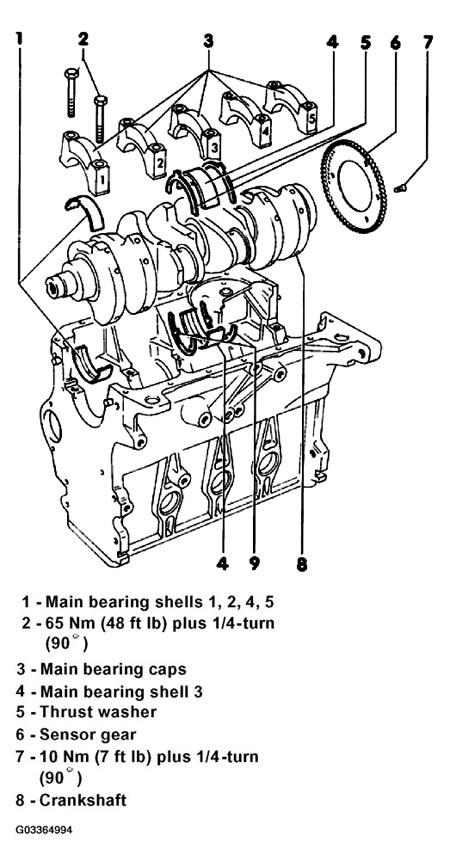

The following list pertains to Fig 1.
- Main bearing shells 1, 2, 4, 5
- Without oil groove: for main bearing caps 1, 2 and 5
- With oil groove: for main bearing cap 4 and cylinder block
- Do not interchange used main bearing shells
- 65 Nm (48 ft lb) plus 1/4-turn (90°)
- Main bearing caps
- Main bearing cap 1: pulley side
- Main bearing cap 3 with recesses for thrust washers
- Holding tabs on cylinder block/main bearing cap, bearing shells must face each other
- Main bearing shell 3
- Without oil groove: for main bearing cap
- With oil groove: for cylinder block
- Thrust washer
- For main bearing cap 3
- Note installation positions
- Sensor gear
- For Engine Speed (RPM) sensor -G28-
- Always replace
- 10 Nm (7 ft lb) plus 1/4-turn (90°)
- Always replace
- Crankshaft
Axial clearance
- New: 0.07 -0.17 mm (0.0028 -0.0067 in.)
- Reconditioning limit: 0.25 mm (0.0098 in.)
Measure radial clearance with Plastigage:
- New: 0.02 -0.06 mm (0.0008 -0.0024 in.)
- Wear limit: 0.17 mm (0.0067 in.)
- Crankshaft dimensions, see CRANKSHAFT DIMENSIONS
CAUTION: DO NOT turn crankshaft when measuring radial clearance. - Thrust washer
- For cylinder block, main bearing -3-
