Anti-theft alarm system overview: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before working on the electrical system:
- Obtain radio anti-theft code.
- Ignition OFF !
- Disconnect battery Ground (GND) strap.
NOTE:
- After reconnecting battery:
- Activate vehicle equipment such as radio, clock and power windows as per appropriate article and/or Owner's Manual.
- On vehicles equipped with OBD II, activate readiness code. See READINESS CODE, CREATING in appropriate ON BOARD DIAGNOSTIC (OBD) .
NOTE:

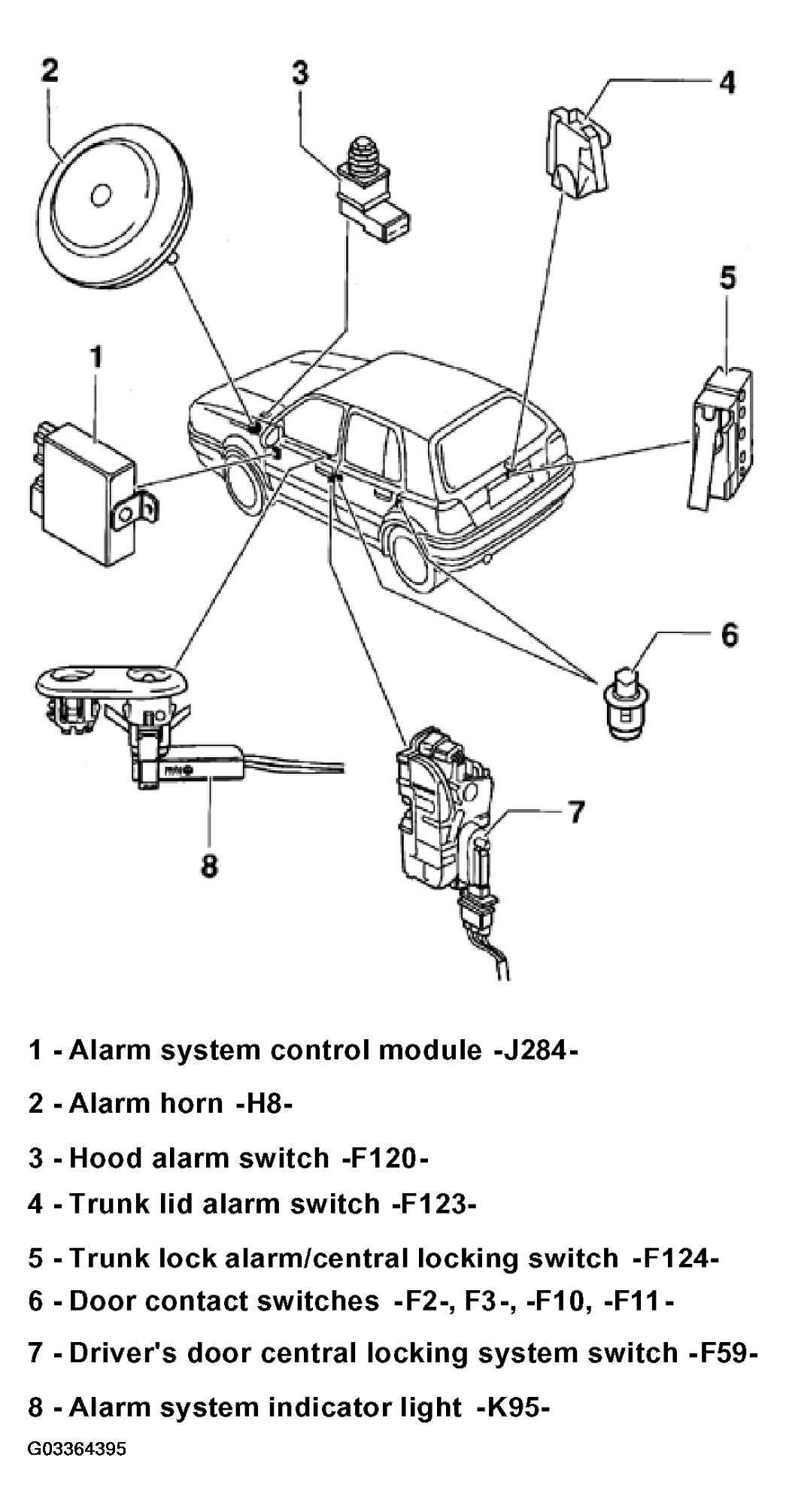

The following list refers to items in Fig 1.
- - Alarm system control module -J284-
- Removing/installing, refer to Alarm system control module -J284-, removing and installing
- - Alarm horn -H8-
- Removing/installing, refer to Alarm horn -H8-, removing and installing
- - Hood alarm switch -F120-
- Removing/installing, refer to Hood alarm switch -F120-, removing and installing
- - Trunk lid alarm switch -F123-
- - Trunk lock alarm/central locking switch -F124-
- Removing, refer to Lock alarm/central locking switch -F124-, removing
- Identifying, refer to Trunk lock alarm/central locking switch, identifying
- Installing, refer to Trunk lock alarm/central locking switch, installing
- - Door contact switches -F2-, F3 -, -F10, -F11 -
- - Driver's door central locking system switch -F59-
- - Alarm system indicator light -K95-
- Removing/installing, refer to Alarm system indicator light -K95-, removing
