Trunk lock alarm/central locking switch, installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Press contact switch -2- onto locating pins.
Install retaining plate around contact switch.

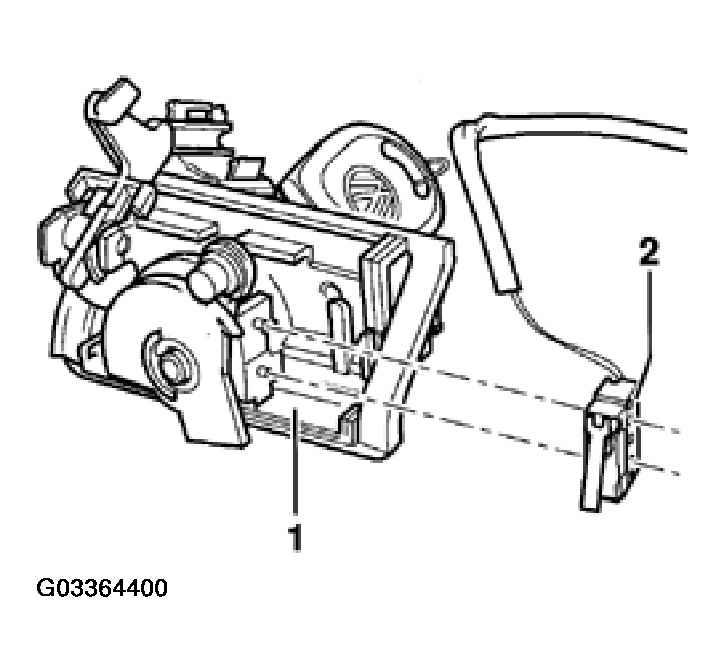

Fig 1: Installing Trunk Lock Alarm/Central Locking Switch

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Ensure contact switch wiring is correctly routed.
Before installing rear lid lock, check contact switch installation position by operating lock cylinder.

Install rear lid lock.
Refer to REAR LID LOCK, REMOVING AND INSTALLING UP TO 03.98 or REAR LID, REMOVING AND INSTALLING LOCK FROM 03.98 AND ON .
Connect 2-pin connector.
Install rear lid trim.
