Trunk lock alarm/central locking switch, identifying

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Contact switch (Part No. 1H0 953 229)
  2. - Cam (three stage)
  3. - Connector (Part No. 191 972 712 B)
    NOTE: Installing the incorrect contact switch will render the alarm inoperable on vehicles with central locking.

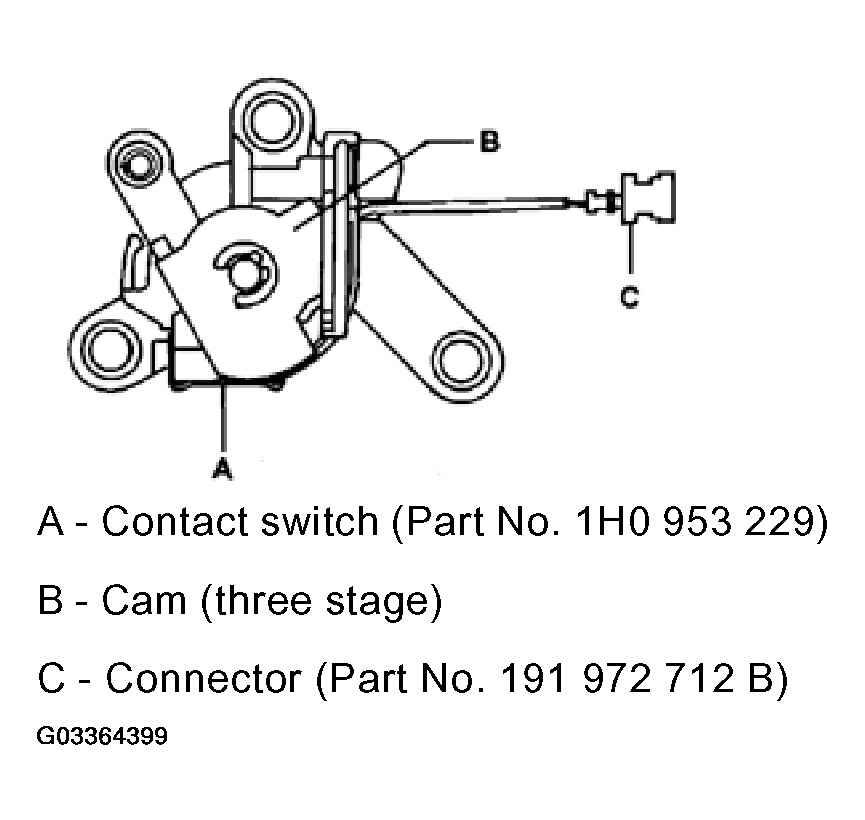

Fig 1: Identifying Trunk Lock Alarm/Central Locking Switch Components
G03364399Courtesy of VOLKSWAGEN OF AMERICA, INC.
