6-cylinder VR6 engine
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

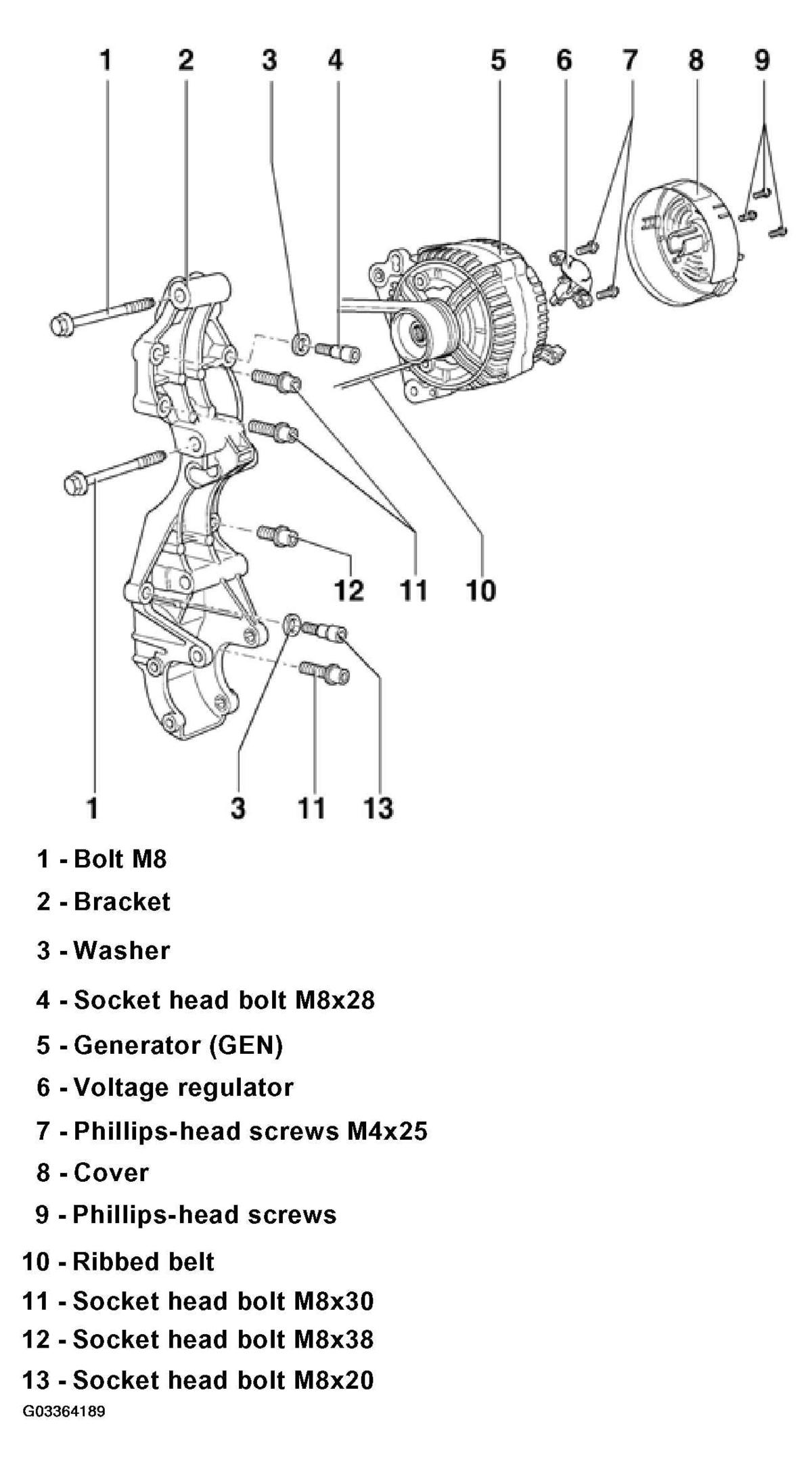

The following list refers to items in Fig 1.
- - Bolt M8
- 25 N.m (18 ft lb)
- - Bracket
- - Washer
- - Socket head bolt M8x28
- 25 N.m (18 ft lb)
- - Generator (GEN)
- Checking. Refer to GENERATOR TROUBLESHOOTING .
- Carbon brushes, checking. Refer to GENERATOR (GEN), SERVICING
- Ribbed belt pulley, replacing. Refer to RIBBED BELT (GENERATOR) PULLEY, REMOVING AND INSTALLING
- - Voltage regulator
- When replacing, remove and install items 9, 8 and 7
- Carbon brushes, checking. Refer to GENERATOR (GEN), SERVICING
- - Phillips-head screws M4x25
- - Cover
- - Phillips-head screws
- - Ribbed belt
- Routing notes. Refer to RIBBED BELTS AND V -BELTS, ROUTING AND SIZES
- Routing and sizes. Refer to 6-cylinder VR6 engine
- Removing and installing. Refer to RIBBED DRIVE BELT, REMOVING AND INSTALLING (VEHICLES WITH VR6 ENGINE)
- - Socket head bolt M8x30
- 25 N.m (18 ft lb)
- - Socket head bolt M8x38
- 25 N.m (18 ft lb)
- - Socket head bolt M8x20
- 25 N.m (18 ft lb)
