6-cylinder VR6 engine

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to items in Fig 1.
  1. - GEN pulley
  2. - Ribbed belt
    1. Removing and installing. Refer to RIBBED DRIVE BELT, REMOVING AND INSTALLING (VEHICLES WITH VR6 ENGINE)
    2. Selecting. Refer to BELT SIZE SPECIFICATION - 6-CYLINDER VR6 ENGINE , column A
  3. - A/C compressor pulley
  4. - Power steering pump pulley
  5. - Crankshaft pulley
  6. - Coolant pump pulley
  7. - Belt tensioner

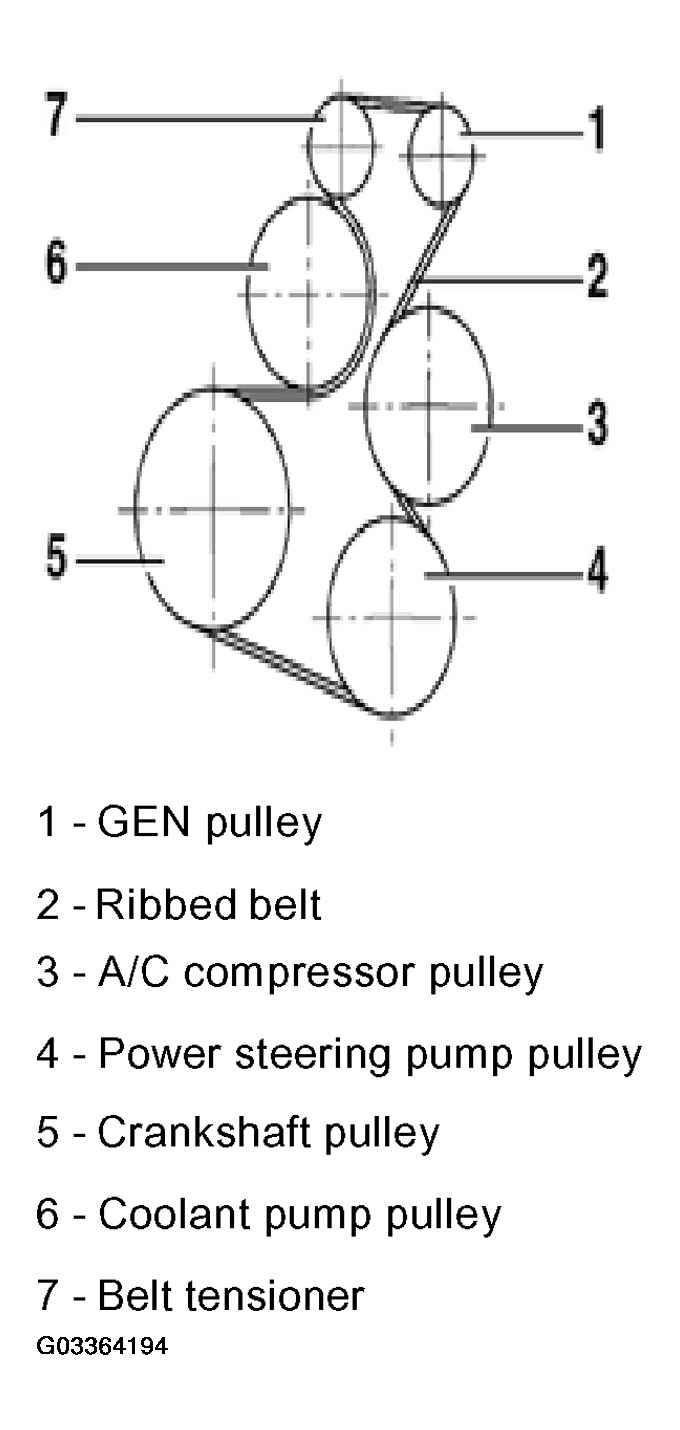

Fig 1: Identifying Ribbed Belts And V Belts, Routing - 6-Cylinder VR6 Engine
G03364194Courtesy of VOLKSWAGEN OF AMERICA, INC.
BELT SIZE SPECIFICATION - 6-CYLINDER VR6 ENGINE

VR6 gasoline engine Ribbed belt (mm)
2.8 liter VR6 24.92 x 1360
