Fresh air/heating control cables, installing and adjusting (without A/C): Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Installing and adjusting control cables on vehicles with A/C, see Control cables, installing and adjusting (with A/C) .
NOTE:
- Install cable ends identified with colored bands to control head levers.
- Connect the cables to the fresh air/heating controls before connecting them to the evaporator/heater box levers.
- After connecting the cables to the control levers, position the cable sleeves against the stops and fasten to the controls using clips.
- Adjust the cables at the flap levers with the control assembly installed.
- When the control knobs are turned from stop to stop, the flaps must move and audibly make contact with the stops.

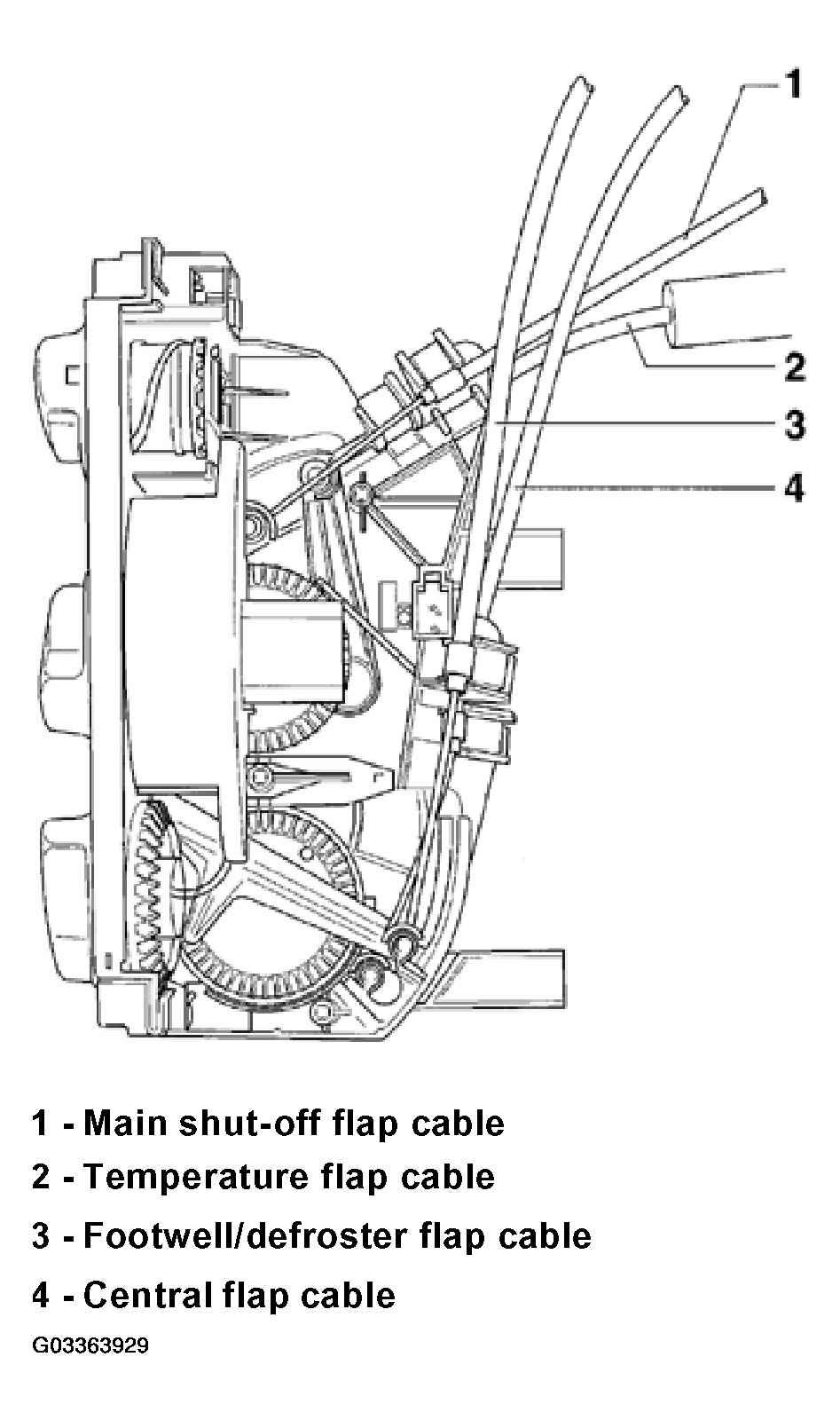

The following list pertains to Fig 1.
- Main shut-off flap cable
- Connects blower control knob to main shut-off flap
- Black sleeve
- Length: 807 mm (31.8 in.)
- Adjusting, refer to Adjusting main shut-off flap cable
- Temperature flap cable
- Connects temperature control knob to temperature flap
- Blue sleeve
- Length: 585 mm (23.0 in.)
- Adjusting, refer to Adjusting temperature flap cable
- Footwell/defroster flap cable
- Connects air flow distribution knob (upper control lever) to footwell/defroster flap
- Black sleeve
- Length: 488 mm (19.2 in.)
- Adjusting, refer to Adjusting footwell/defroster flap cable
- Central flap cable
- Connects air flow distribution knob (lower control lever) to central flap
- Black sleeve
- Length: 639 mm (25.2 in.)
- Adjusting, refer to Adjusting central flap cable
