Adjusting main shut-off flap cable

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install fresh air/heater control assembly in instrument panel, refer to HEATER BOX/EVAPORATOR HOUSING, ASSEMBLY .
Adjust fresh air blower switch -E9- to stop at position "0".
Connect main shut-off flap cable (black sleeve) to main shut-off flap lever.
Push lever in direction of arrow to stop.
Hold lever in this position and install cable retaining clip.

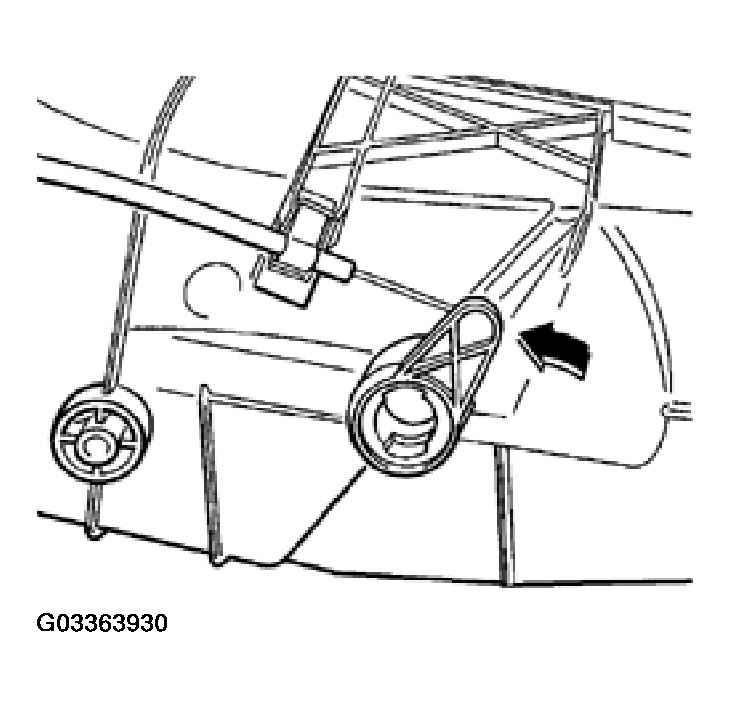

Fig 1: Adjusting Main Shut-Off Flap Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.
