A/C clutch -N25-, assembly
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

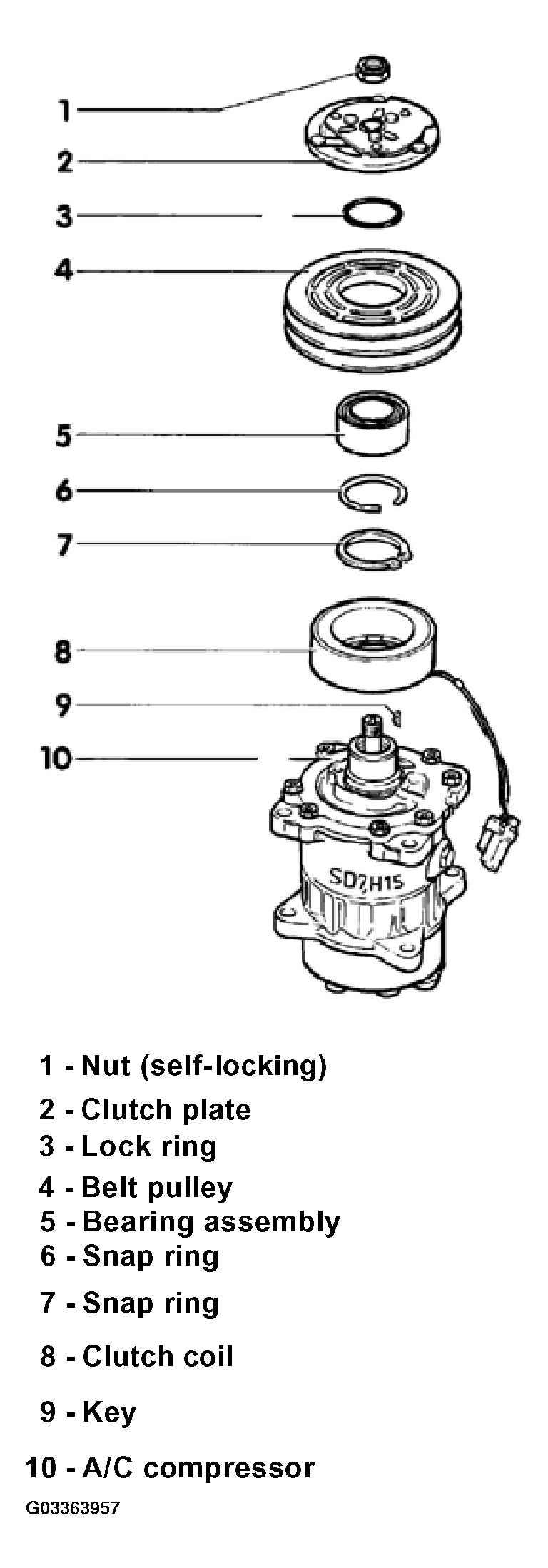

- The illustration (left) shows the correct assembly detail for the A/C clutch -N25-.
- The A/C compressor shown (Sanden model SD7 -H15-) is not applicable for all Golf, GTI, Jetta and Cabrio vehicles.
The following list pertains to Fig 1.
- Nut (self-locking)
- Removing, refer to Removing and installing clutch plate nut, and adjusting gap between clutch plate and belt pulley
- Gap between clutch plate and belt pulley, adjusting, refer to Removing and installing clutch plate nut, and adjusting gap between clutch plate and belt pulley
- Gap between clutch plate and belt pulley, measuring, refer to Measuring gap between clutch plate and belt pulley
- Clutch plate
- Removing, refer to Removing clutch plate
- Lock ring
- Belt pulley
- Removing, refer to Removing belt pulley
- Installing, refer to Installing belt pulley
- Bearing assembly
- Removing, refer to Removing bearing assembly
- Installing, refer to Installing bearing assembly
- Snap ring
- Snap ring
- Clutch coil
- Key
- A/C compressor
- Refrigerant oil capacity: 115 cc +/-15 cc (3.9 oz = 0.5 oz)
