Removing and installing clutch plate nut, and adjusting gap between clutch plate and belt pulley
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

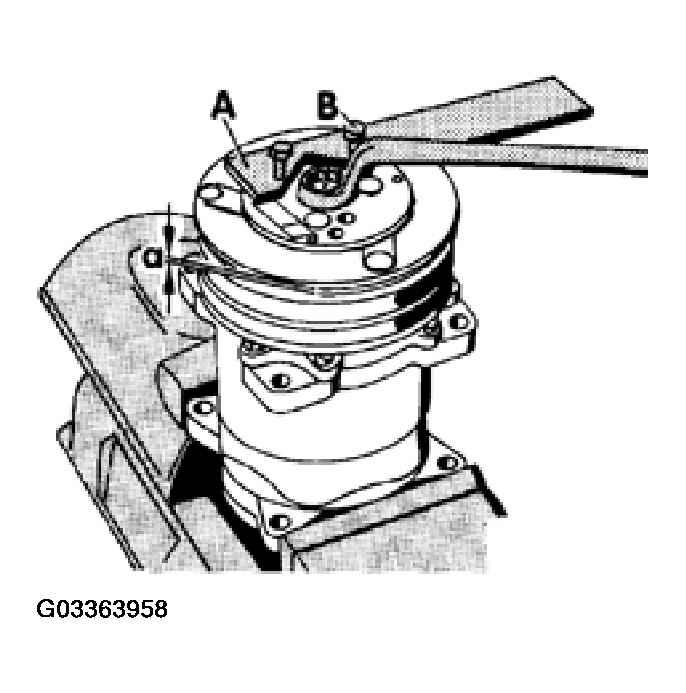

- Hold clutch plate using spanner wrench -A- and remove clutch plate nut.
- A - Mastercool tool No. 90901 or equivalent
- B - Hex head bolt, 1/4 in. (for tool)
To adjust gap between clutch plate and belt pulley:
- Hold clutch plate and tighten clutch plate nut (self-locking) until gap -a- = 0.7 mm (.028 in. or approx. 1/32 in.).
