Measuring gap between clutch plate and belt pulley

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Measure distance between clutch plate and belt pulley as shown.
Using a fused 12 Volt power supply, connect 12 V (power (B+) and Ground (GND)) to A/C clutch connector.
With clutch engaged, measure distance between clutch plate and belt pulley once again.
Difference between first and second measurement is gap.
- Must be 0.7 mm (.028 in. or approx. 1/32 in.)
If necessary, adjust gap, refer to Removing and installing clutch plate nut, and adjusting gap between clutch plate and belt pulley

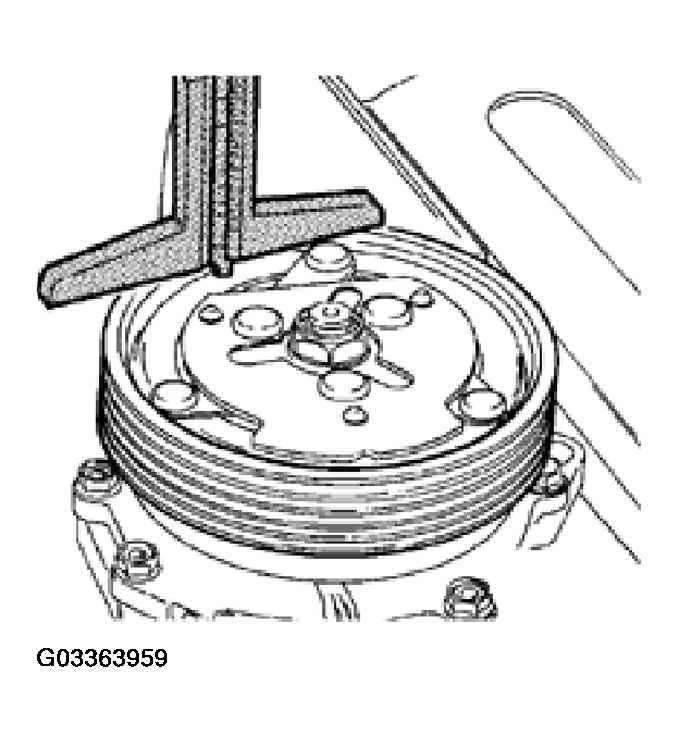

Fig 1: Measuring Gap Between Clutch Plate And Belt Pulley
Courtesy of VOLKSWAGEN OF AMERICA, INC.
