Rear lid, assembly overview from 03.98 and on
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

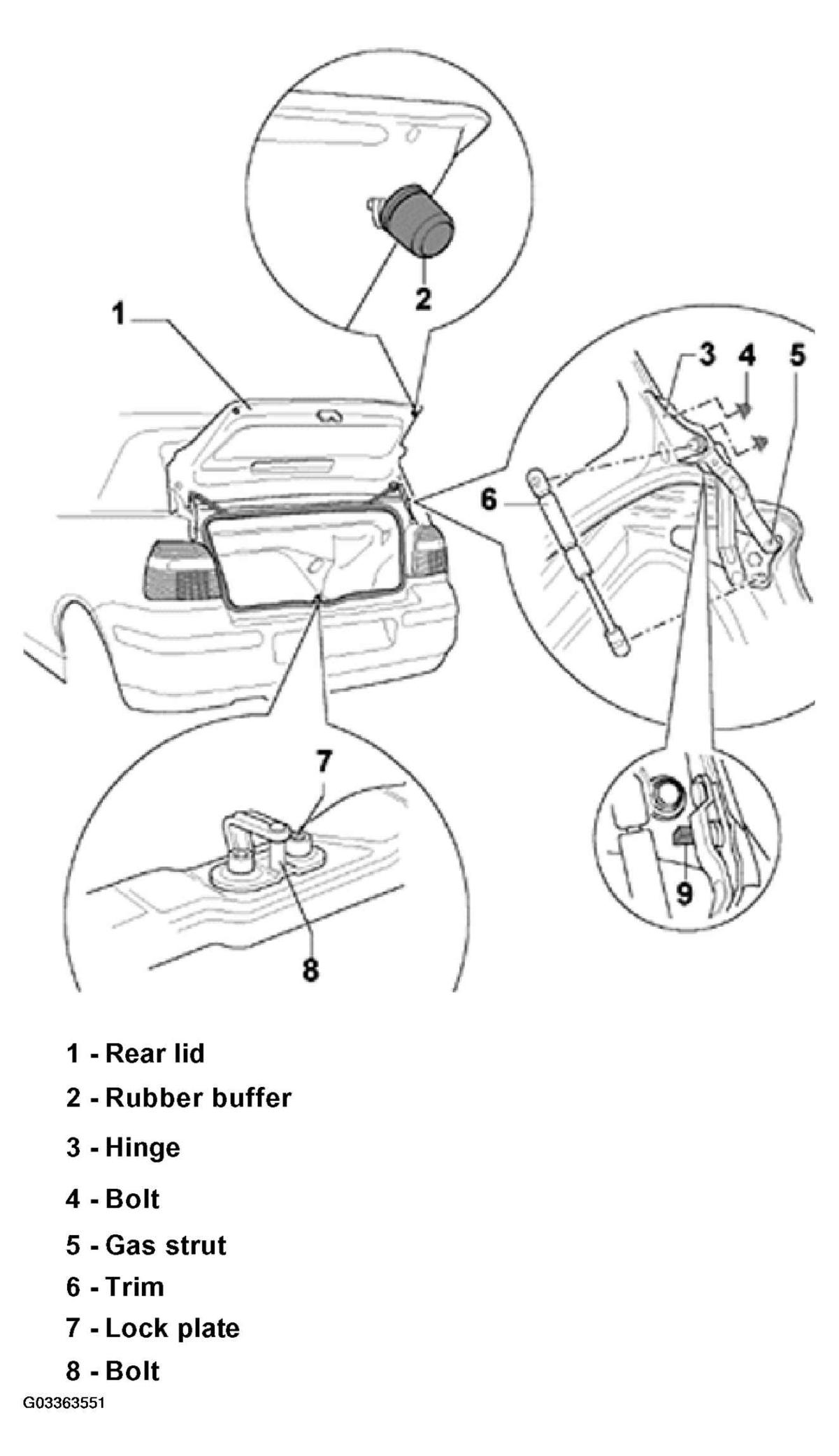

The following list refers to Fig 1
.
- - Rear lid
- Adjusting, within oversized holes
- Gaps/mating lines
- - Rubber buffer
- - Hinge
- - Bolt
- 22 N.m (17 ft lb)
- - Gas strut
- Removing and installing, refer to Gas strut, removing .
- Releasing gas, refer to RELEASING GAS FROM STRUT .
- - Trim
- Removing and installing. See REAR LID .
- - Lock plate
- Adjusting, within oversized holes
- Gaps/mating lines
- - Bolt
- 23 N.m (17 in. lb)
