Gas strut, removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Support rear lid.
Lift retainer -2- with a screwdriver and pull gas strut off ball stud -1-.

NOTE: If gas strut is to be reused, retaining clip -2- must not be taken out of ball socket completely, otherwise retaining clip will be damaged.

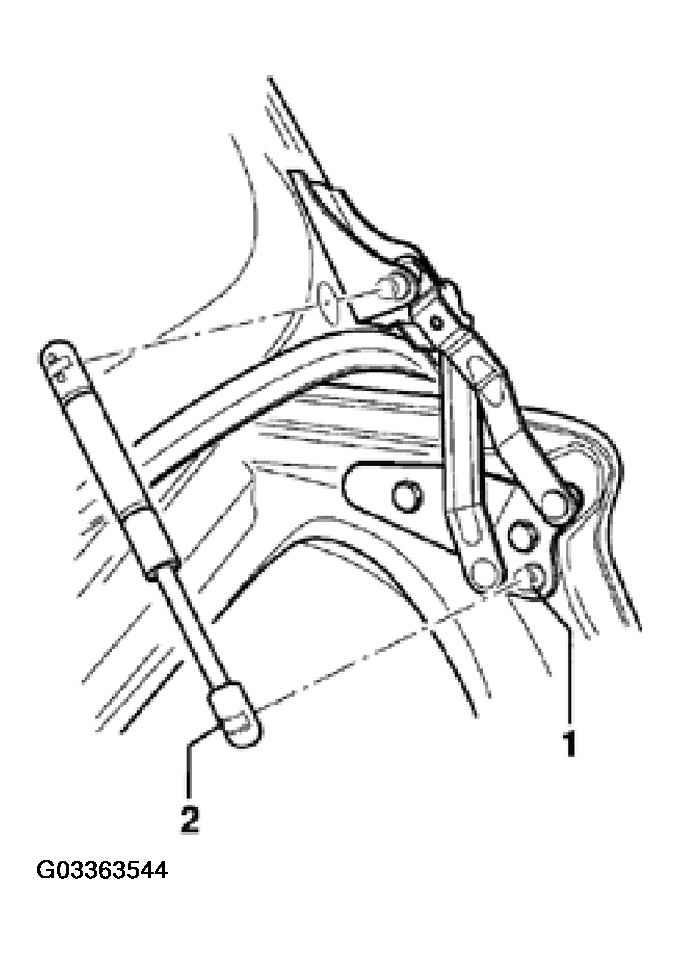

Fig 1: Lifting Retainer With Screwdriver And Pulling Gas Strut Off Ball Stud

Courtesy of VOLKSWAGEN OF AMERICA, INC.
