Hood, assembly overview from 03.98 and on

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1 .

- Hood
- Removing
  - Remove windshield washer system cables/hoses and washer nozzles.
  - Disconnect gas filled strut - 2 - at hood.
  - Remove bolts - 8 - and take off hood.
- Adjusting:
  - Align hood -1- between fenders by moving hood hinges.
  - Adjust hood height relative to fenders with rubber stop - 4 -.
- Gaps/mating lines.
- After reinstalling or adjusting apply corrosion protection to hinges and bolts
- Gas-filled strut
- Removing and installing, refer to GAS STRUT, REMOVING .
- Releasing gas, refer to RELEASING GAS FROM STRUT .
- Lock carrier seal
- Rubber stop
- Adjust hood height relative to fenders with rubber stop - 4 -.
- Guide piece
- Plenum chamber seal
- Pushed onto flange
- Washer nozzle
- Removing
See WASHER NOZZLES (CABRIO FROM 10.98), REMOVING .
- Bolt
- 23 N.m (17 ft lb)
- Hinge
- Rubber buffer

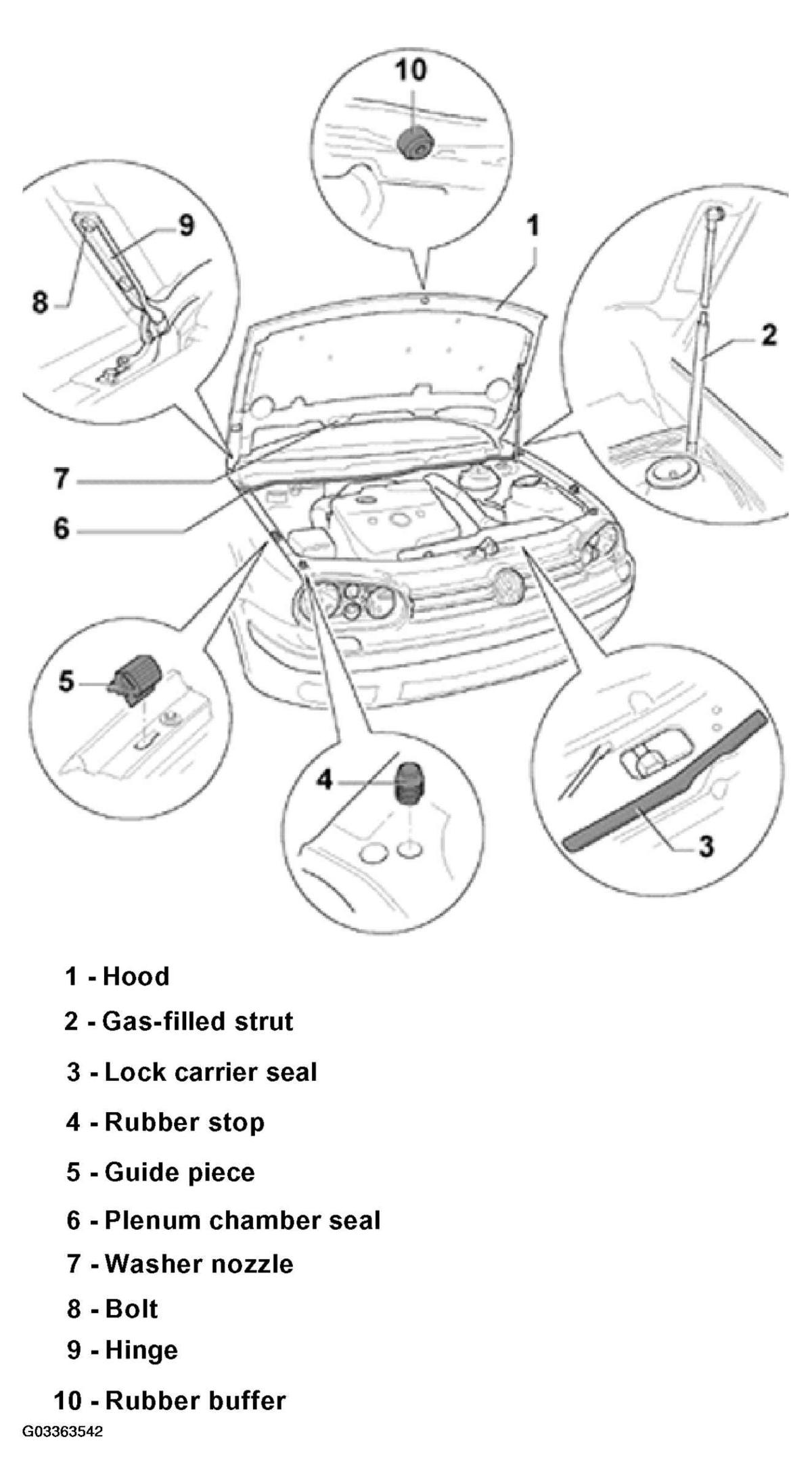

Fig 1: Identifying Hood Assembly Overview (From 03.98 & Up)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
