Gas strut, removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Support hood.
Lift locking clip -1- with a screwdriver and pull gas strut off ball-head stud -2-.

NOTE: If gas strut is to be re-used, do not pry out locking clip -1- completely from ball socket or clip will be damaged.

- Locking clip
- Mounting bracket with ball head
- Gas strut

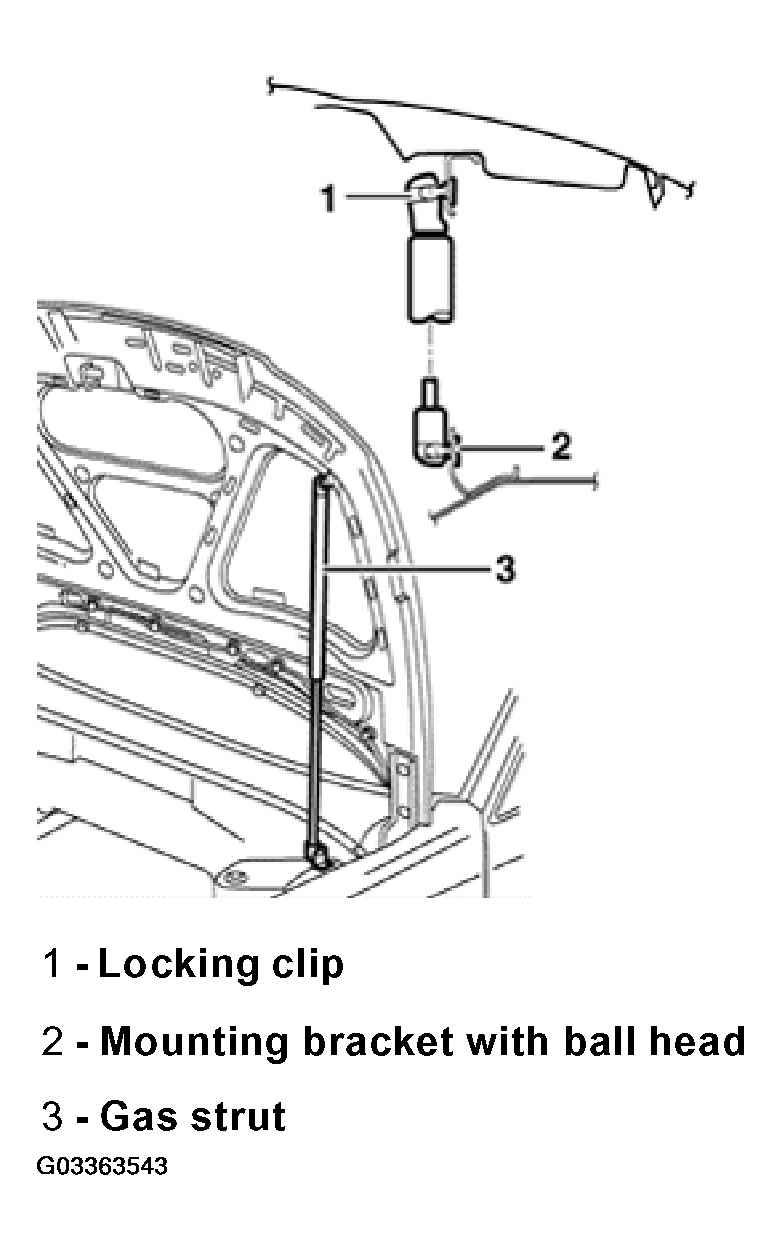

Fig 1: Lifting Locking Clip With Screwdriver And Pulling Gas Strut Off Ball-Head Stud

Courtesy of VOLKSWAGEN OF AMERICA, INC.
