Transmission housing cover and 5th gear, removing/installing
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

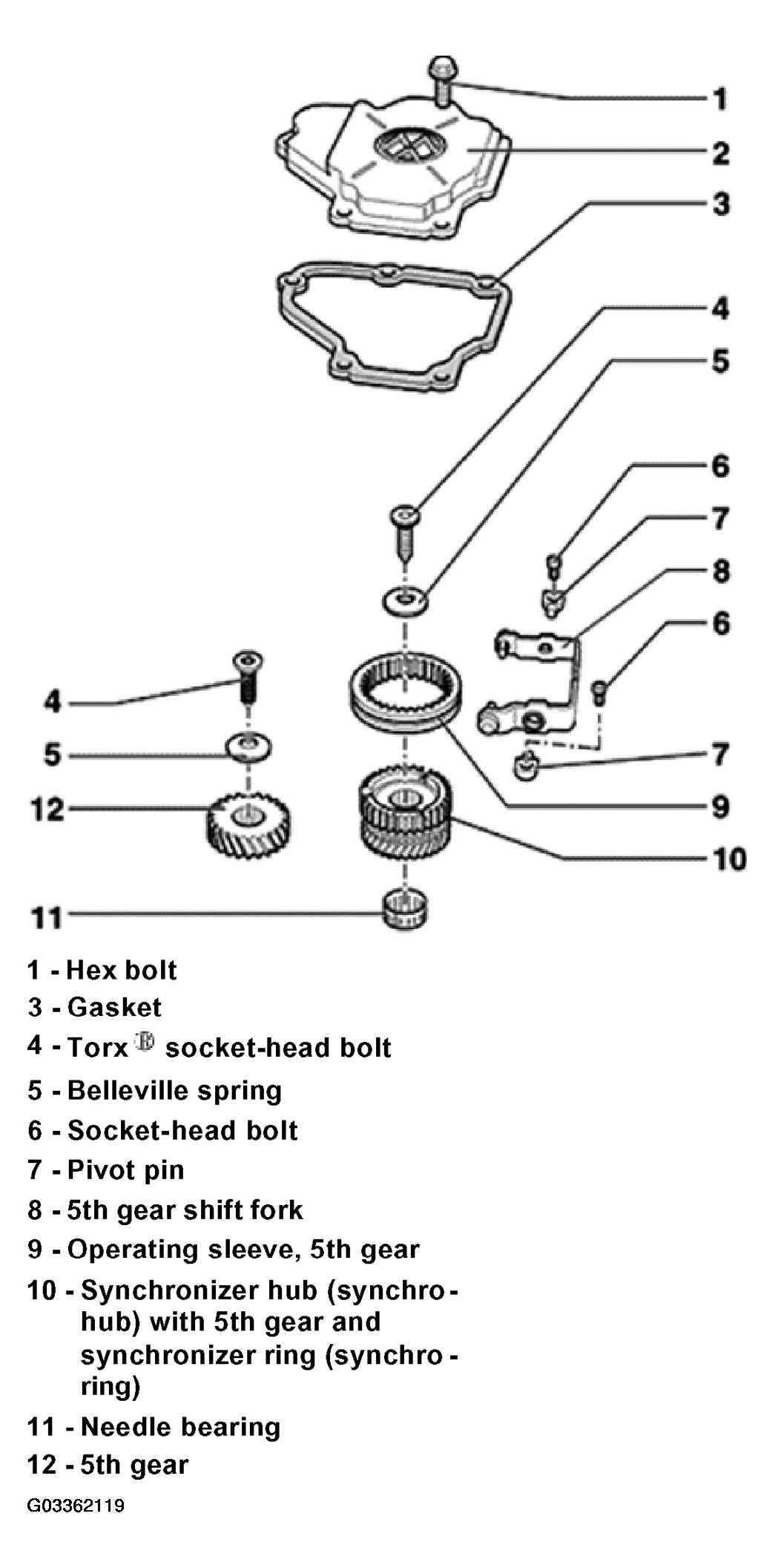

The following list pertains to Fig 1 .
- Hex bolt
- For transmission housing cover
- Tightening torque: 10 N.m (7 ft lb)
- Transmission housing cover NOTE: If the transmission housing cover is installed, check transmission oil level as follows:
- Fill with oil up to lower edge of filler hole.
- Install plug.
- Start engine, engage a gear and let the transmission turn for approx. 2 minutes.
- Stop engine and add oil to fill transmission to lower edge of filler hole again.
- Gasket
- Torx(R) socket-head bolt
- Tightening torque: 80 N.m (59 ft lb)
- Bolt head design holds Belleville spring -5- in place
- Belleville spring
- Installation position, see ADJUSTING 5TH GEAR
- Socket-head bolt
- Tightening torque: 25 N.m (18 ft lb)
- Pivot pin to trans. housing
- Pivot pin
- 5th gear shift fork
- Disassembling/assembling, see SHIFT FORKS, DISASSEMBLING AND ASSEMBLING
- Adjusting, see ADJUSTING 5TH GEAR
- Operating sleeve, 5th gear
- Installation position, see 5th gear synchro -ring, checking for wear
- Adjusting, see ADJUSTING 5TH GEAR
- Synchronizer hub (synchro - hub) with 5th gear and synchronizer ring (synchro - ring)
- Disassembling/assembling, see 19
- Needle bearing
- 5th gear
- Installation position, see INSTALLATION POSITION FOR 5TH GEAR
