5th gear synchro -ring, checking for wear

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Before installing 5th gear, press synchro-ring onto cone of gear and measure gap -a- with feeler gauge.
Position 5th gear together with needle roller bearing.
Place 5th gear synchro-ring on gear.

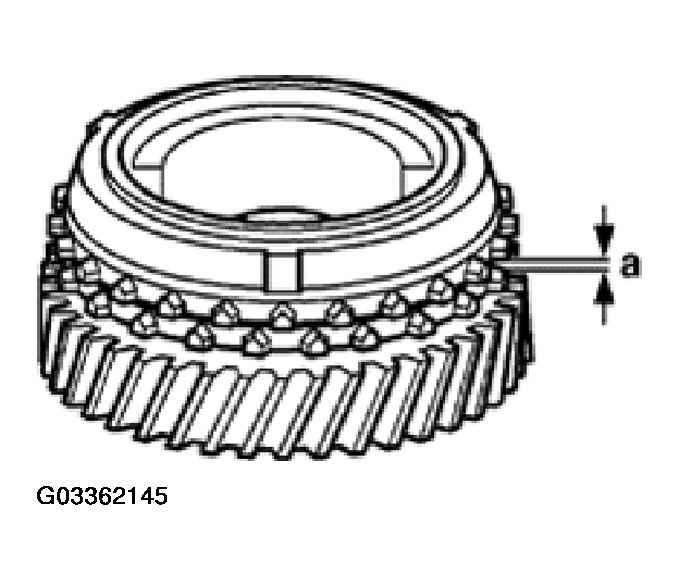

Fig 1: Measuring Gap -A- With Feeler Gauge

Courtesy of VOLKSWAGEN OF AMERICA, INC.

5TH GEAR SYNCHRO -RING WEAR LIMIT CHART

Gap -a-	New	Wear limit
5th gear	1.1-1.7 mm (0.043-0.067 in.)	0.5 mm (0.020 in.)
