Adjusting 5th gear
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
- Engage 5th gear.

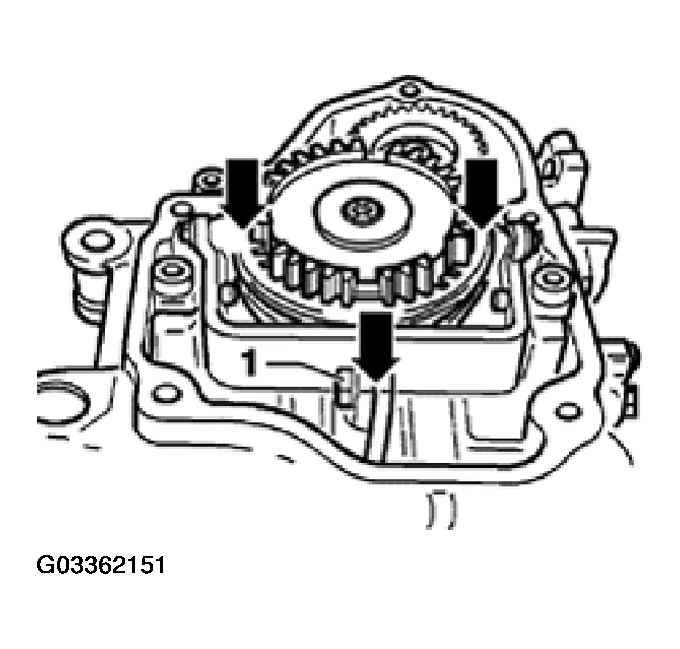

- Loosen bolt -1-.
- Press operating sleeve and shift fork in direction of - arrows- and tighten bolt -1-.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Tightening torque: 25 N.m (18 ft lb)
- Check measurement:
- It must NOT be possible to slide a 0.2 mm feeler gauge between operating sleeve and gear
- If necessary, repeat adjustment procedure.
- Disengage 5th gear.NOTE:
- Operating sleeve must now be in neutral position.
- Synchro-ring must be able to move freely.
- Install transmission housing cover.
