Gear selector mechanism, adjusting: Notes

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Transmission in Neutral

Remove shift knob and boot, see GEAR SELECTOR HOUSING, REMOVING AND INSTALLING .
Remove balance weight, see GEAR SELECTOR CONTROL CABLES, REMOVING AND INSTALLING .
Loosen bolt -A- and nut -B- until gear selector cables and actuating arm/gate selector cable move freely in elongated holes.

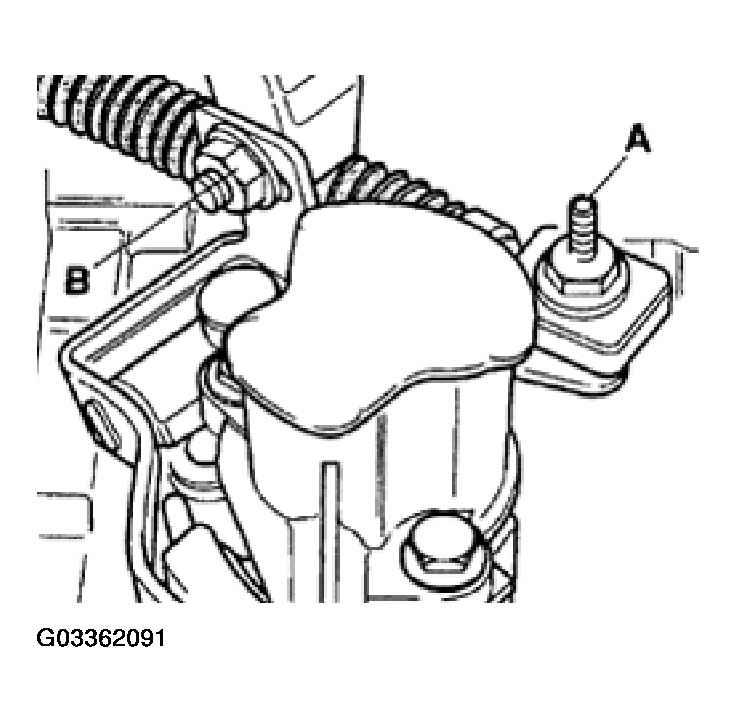

Fig 1: Loosening Bolt -A- And Nut -B- Until Gear Selector Cables And Actuating Arm/Gate Selector Cable Move Freely

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Loosen bolt -C-.
Install shift linkage gauge 3192.

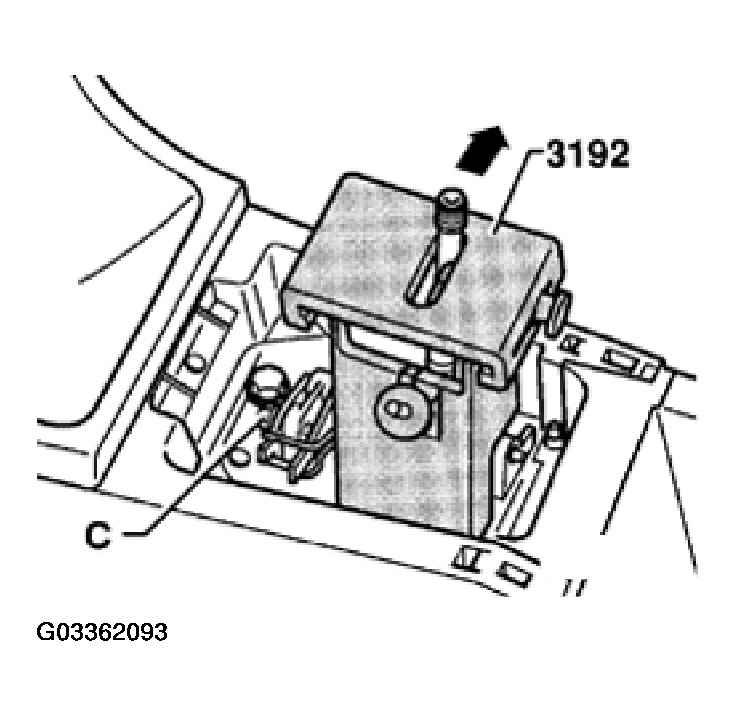

Fig 2: Installing Shift Linkage Gauge 3192
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Pivot gauge mounting hook under mounting plate and tighten nut -D-. See Fig 2 .
Press shift lever into left-hand detent of slide.

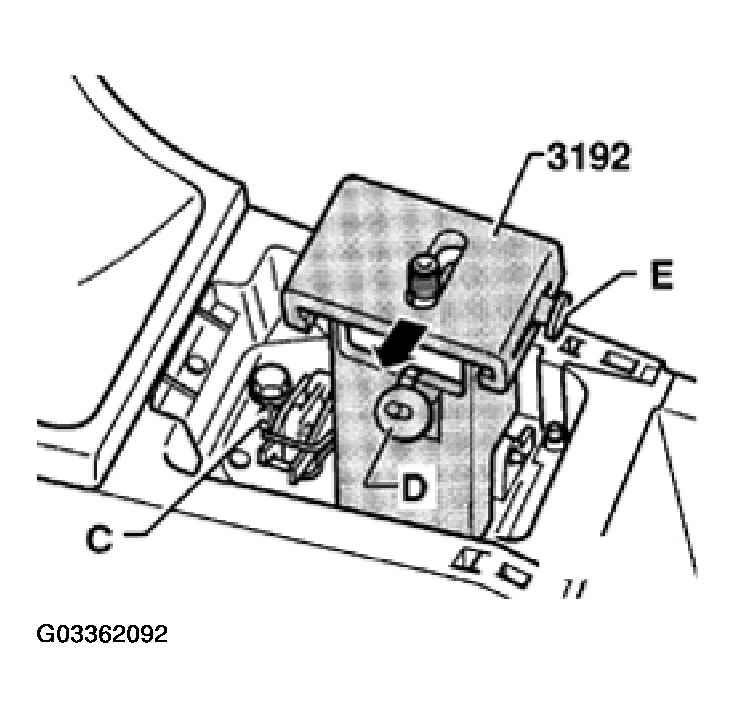

Fig 3: Pressing Shift Lever Toward Right-Hand Detent
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Press shift lever and slide toward left (direction of -arrow-) to stop and tighten slide with bolt -E-.
Press shift lever toward right-hand detent (direction of -arrow-).
Tighten bolt -C-.
Install wedge and pin.

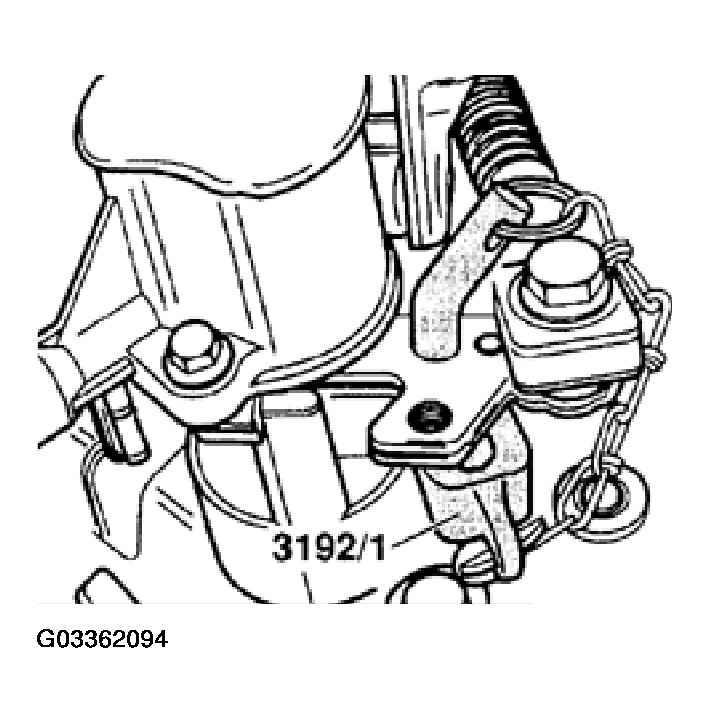

Fig 4: Installing Wedge And Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Slide wedge between gear selector lever and selector cover plate, making sure there is no play.
CAUTION: Installing the wedge must not lift the transmission gearshift lever.
In this position secure gear selector cable and actuating arm/selector cable, and check position of wedge.
Remove shift linkage gauge 3192.
Install shift lever and boot, see GEAR SELECTOR HOUSING, REMOVING AND INSTALLING .
