Gear selector control cables, removing and installing
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Lubricate all mountings and contact surfaces with MoS2 grease.

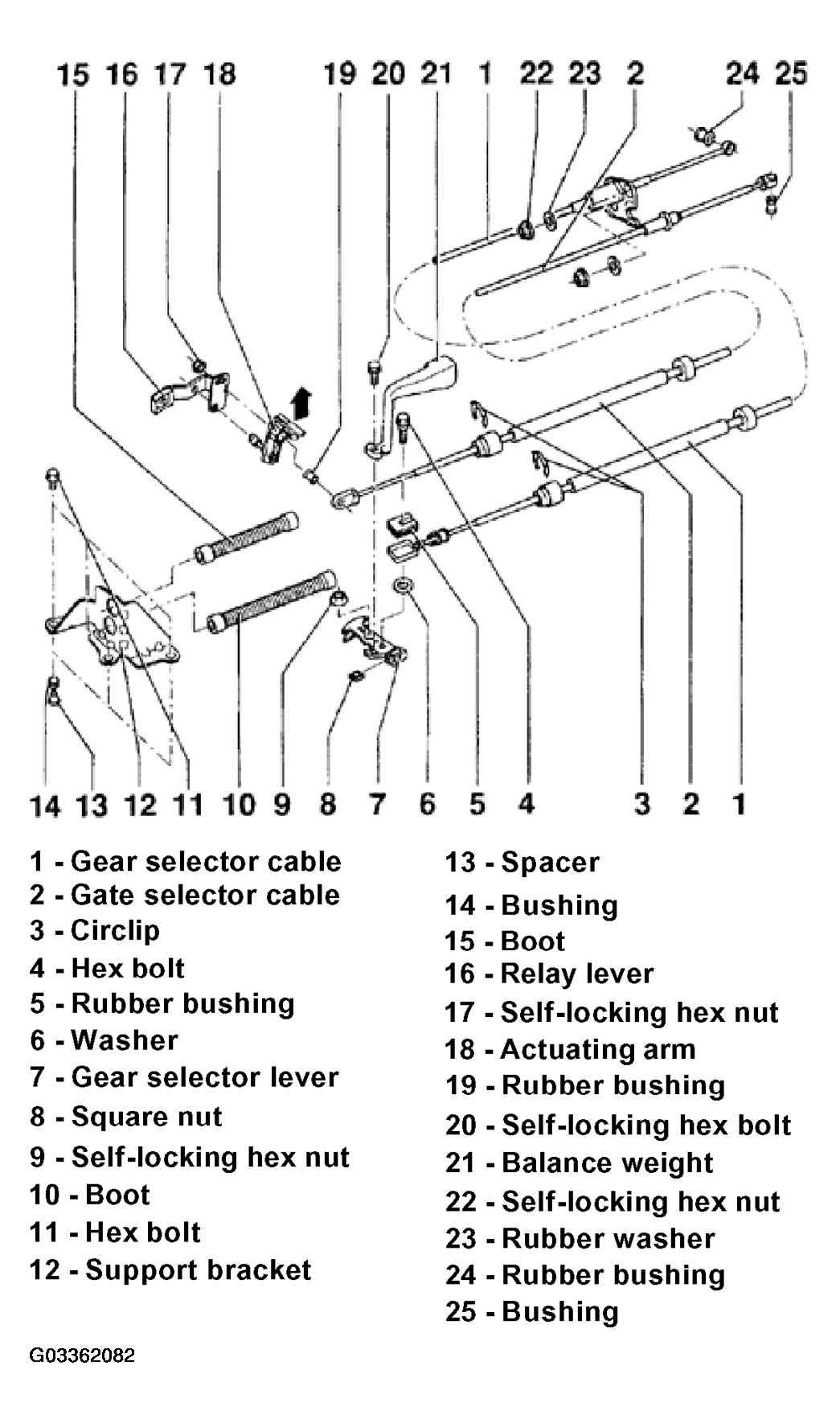

The following list pertains to Fig 1 .
- Gear selector cable
- Installation position, see GEAR SELECTOR MECHANISM, SERVICING
- Gate selector cable
- Pull off actuating arm -18- by pulling lug in direction indicated by -arrow-
- Installation position, see GEAR SELECTOR MECHANISM, SERVICING
- Install before installing gear selector cable
- - Circlip
- Be careful to avoid damaging boot when removing
- Hex bolt
- With shoulder
- Tightening torque: 25 N.m (18 ft lb)
- Attaches gear selector cable to gear selector lever -7-
- Rubber bushing
- For gear selector cable connection to gear selector lever -7-
- Press out of cable end piece when replacing boot
- Washer
- Install between gear selector cable and gear selector lever -11-
- Gear selector lever
- Fits in one position only
- Installation position, see GEAR SELECTOR LEVER AND RELAY LEVER, INSTALLATION POSITION
- After installing, adjust gear selector mechanism, see GEAR SELECTOR MECHANISM, ADJUSTING
- Square nut
- Insert into gear selector lever
- Self-locking hex nut
- For gear selector lever
- Always replace
- Tightening torque: 25 N.m (18 ft lb)
- Boot
- For gear selector cable -1-
- Carefully pull over gear selector cable end piece
- Apply MoS2 grease
- Hex bolt
- For support bracket -12-
- Tightening torque: 25 N.m (18 ft lb)
- Support bracket
- Spacer
- Bushing
- For mounting support bracket to transmission
- Boot
- For gate selector cable -2-
- Carefully pull over gear selector cable end piece
- Apply MoS2 grease
- Relay lever
- Remove from transmission before removing clutch controls
- Installation position, see GEAR SELECTOR LEVER AND RELAY LEVER, INSTALLATION POSITION
- Self-locking hex nut
- Always replace
- Tightening torque: 15 N.m (11 ft lb)
- Loosen only to adjust gear selector mechanism
- Actuating arm
- With pivot pin to mount relay lever
- Installation position, see GEAR SELECTOR LEVER AND RELAY LEVER, INSTALLATION POSITION
- Rubber bushing
- For gate selector cable connection to actuating arm
- Drive out/drive in with drift
- Self-locking hex bolt
- Always replace
- Tightening torque: 20 N.m (15 ft lb)
- Balance weight
- Remove to adjusting gear selector mechanism
- Self-locking hex nut
- For gear selector cable to selector housing
- Always replace
- Tightening torque: 15 N.m (11 ft lb)
- Rubber washer
- Rubber bushing
- For gear selector cable connection to shift lever
- Drive out/drive in with drift
- Bushing
- For gate selector cable connection to selector bracket
- Drive out/drive in with drift
