Differential, adjusting: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
Adjustment of the differential is necessary if any of the following components is replaced:
- Transmission housing
- Clutch housing
- Differential housing
- Differential tapered roller bearings
- Press tapered roller bearing outer race into clutch housing without adjustment shim, using 30-205 thrust pad , see Pressing tapered roller bearing outer race into clutch housing
.CAUTION: Tapered roller bearing inner and outer races are a matched pair. DO NOT interchange.
- Press tapered roller bearing outer race into transmission housing without adjustment shim, using 30-205 thrust pad, see Differential, assembly .
- Install differential in clutch housing.
- Install transmission housing with 5 bolts and tighten.
- Tightening torque: 25 N.m (18 ft lb)

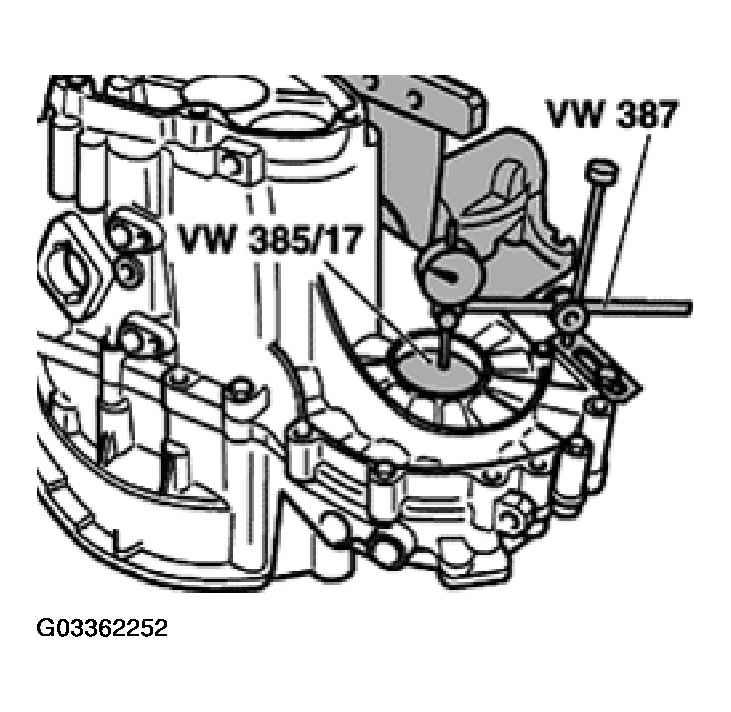

- Install dial indicator with mounting fixtures as shown. Set indicator to zero with 1 mm preload.
- Move differential gear up and down, observe and record play on dial indicator.
- Example: measured play = 0.70 mm
CAUTION: Do not rotate differential while measuring, as this will settle bearings and result in false measurement.
