Clutch pedal, removing and installing: Installing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. While doing so, note the following:

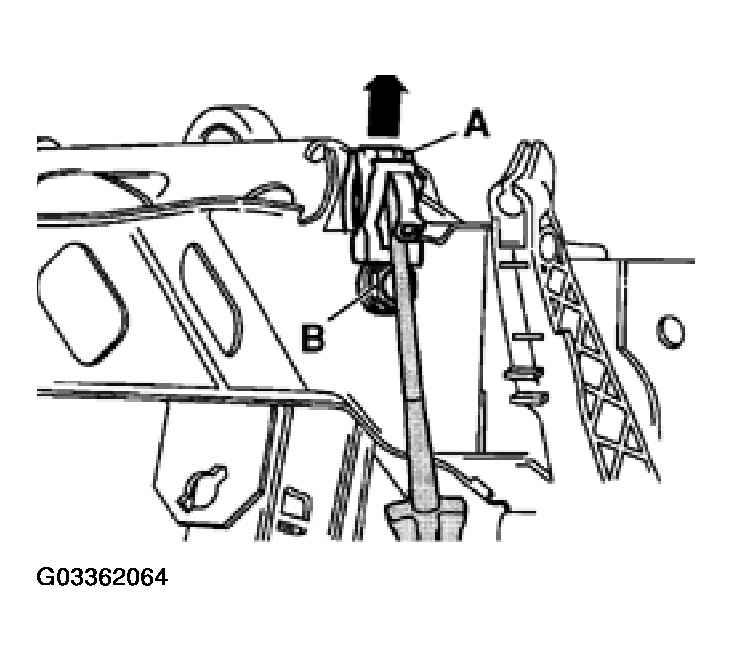

Before installing securing clip on brake pedal side, position pivot pin so that flats -B- are vertical. SeeCLUTCH PEDAL, REMOVING AND INSTALLING , Figure .
Connecting clutch pedal to master cylinder operating rod, see INSTALLING

Refill brake fluid reservoir to "max" marking with brake fluid.
NOTE: The clutch hydraulic system must be bled if the brake fluid level has dropped below the "min" marking, see CLUTCH HYDRAULIC SYSTEM, BLEEDING .
