Master cylinder, removing and installing: Installing
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. While doing so, note the following:

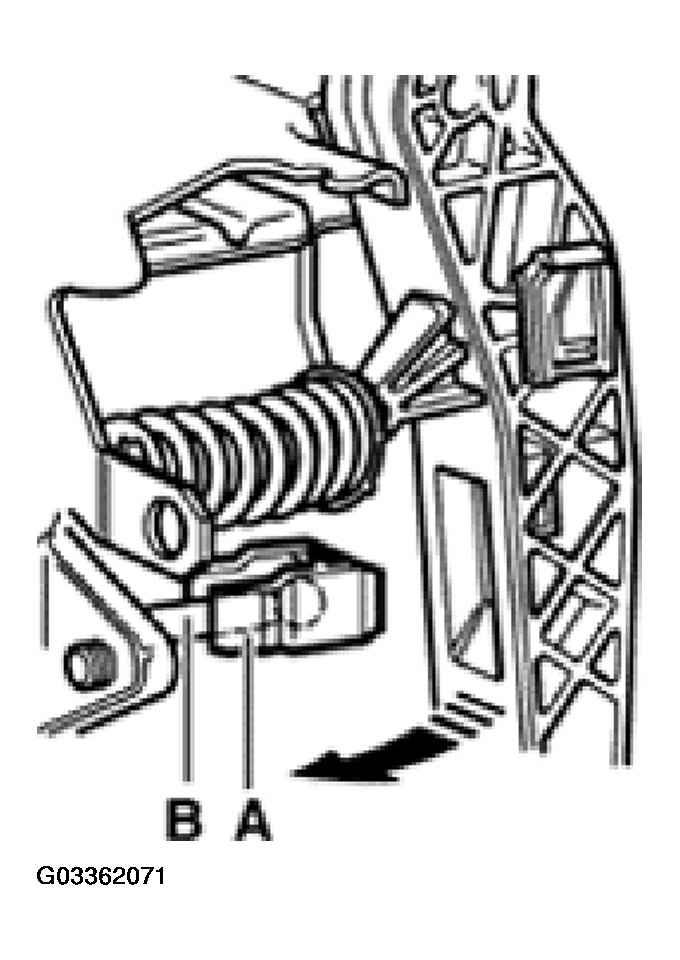

- Retainer -A- must be installed on master cylinder operating rod -B-.
- To engage retainer, press clutch pedal toward bulkhead (direction indicated by arrow). Make sure retainer is located correctly.
- Bleed clutch hydraulic system after installing master cylinder, see CLUTCH HYDRAULIC SYSTEM, BLEEDING .
