Clutch hydraulic system, bleeding

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Bleed clutch hydraulic system using VAG 1238/1 or VAG 1238B brake filling and bleeding unit.
To bleed system, use VAG 1238/B bleeder hose; length = 670 mm (26.38 in.)
Connect bleeder hose to brake bleeding unit collector bottle -A- pressure hose.

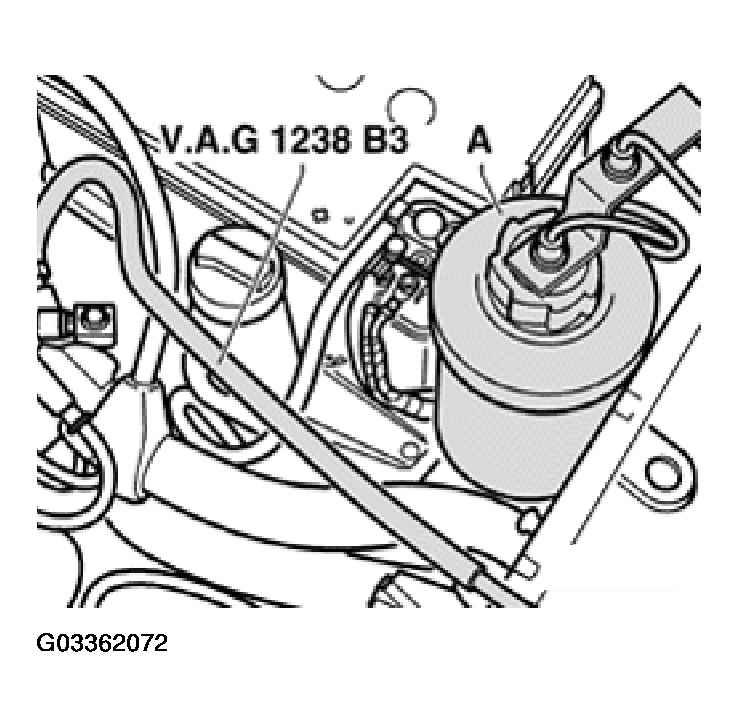

Fig 1: Bleeding Clutch Hydraulic System Using VAG 1238/1 or VAG 1238B Brake Filling And Bleeding Unit

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connect bleeder hose to slave cylinder -B- and open bleeder valve.

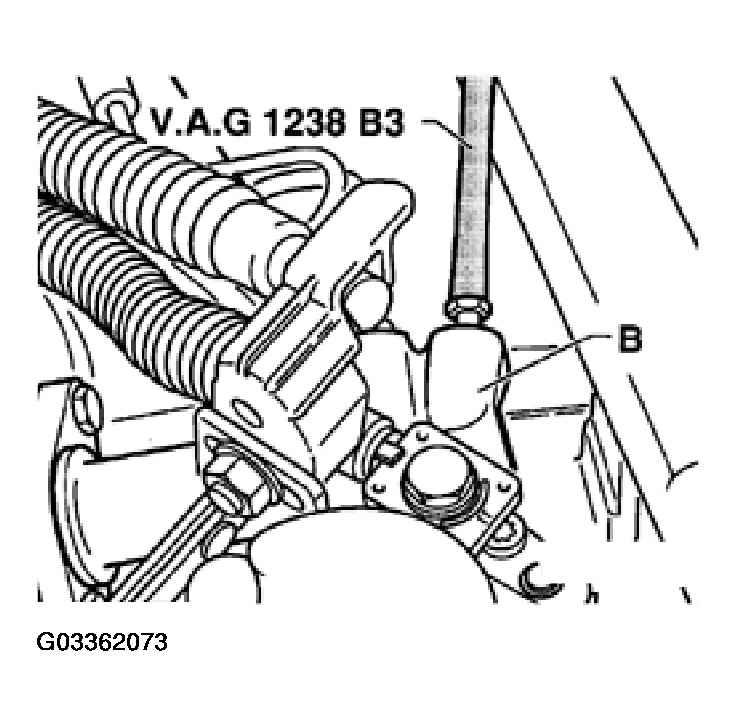

Fig 2: Connecting Bleeder Hose To Slave Cylinder -B- And Opening Bleeder Valve
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Depress clutch pedal several times after completing bleeding process.
