Golf 4-door, Jetta
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Trim fits over sealing flange of door inner seal.
NOTE:

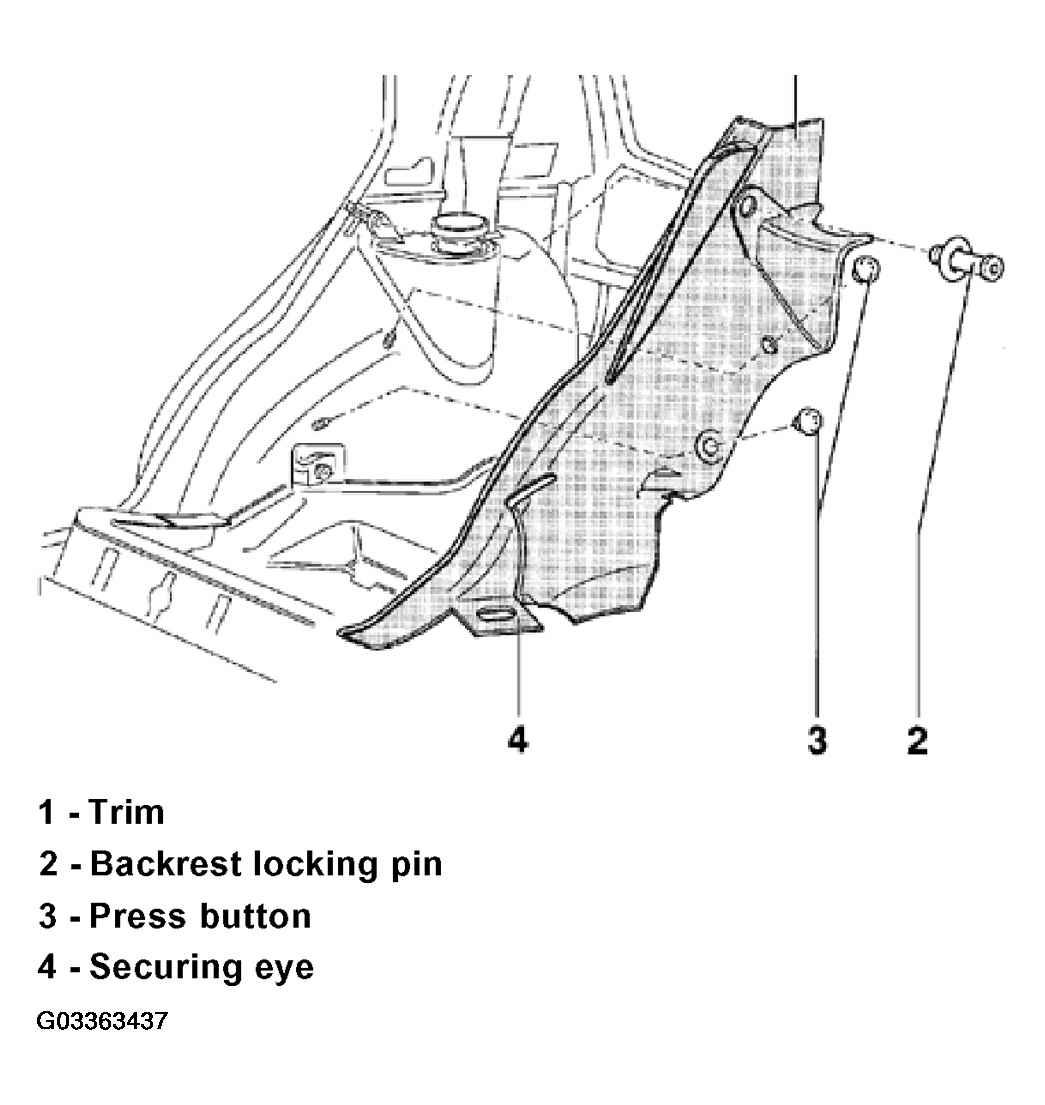

The following list refers to items in Fig 1.
- - Trim
Removing:
- Remove seat and backrest.
- Remove sill panel trim. See SILL PANEL TRIM, REMOVING AND INSTALLING .
- Remove upper B-pillar trim. See GOLF 4-DOOR, JETTA .
- Remove upper C-pillar trim. See Golf, GTI (Golf) or, refer to JETTA (Jetta).
- Remove pin -2- and press buttons -3-.
- - Backrest locking pin
- - Press button
- Unscrew or push on
- - Securing eye
- Secured with rear sill panel trim plug.
